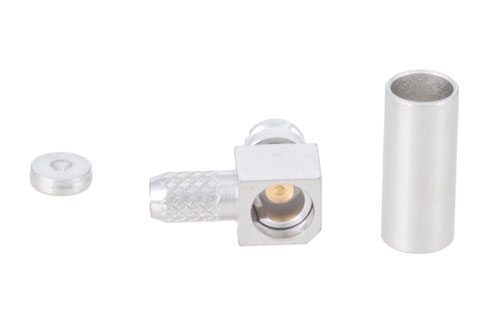

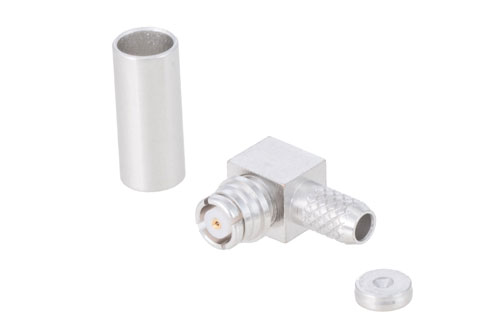

PE45882 SMP plug right angle coaxial connector has an interface type of SMP plug RG316 and a 50 Ohm impedance. This connector is part of our non-magnetic RF interconnects that are designed for carrying RF signals within a magnetic field. As such, they have a low level of magnetic susceptibility and no field distortion. Pasternack's SMP plug connector uses crimp/solder as an attachment method. Our plug SMP right angle coaxial connector provides a maximum frequency of 12.4 GHz. This SMP coaxial connector is stocked to be readily available for same business day shipment.
The Pasternack right angle SMP plug coaxial connector has a maximum VSWR of 1.25:1. This non-magnetic connector is suitable for use in MRI and other medical imaging equipment, patient monitoring devices, medical technology, and other non-magnetic RF applications. Pasternack's SMP coaxial connector has a bronze body with copper-tin-zinc alloy plating. Our PE45882 SMP right angle connector uses gold over copper-plated beryllium copper contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The radio frequency connector is made from bronze material and has a contact life of 500 cycles or more. The PE45882 SMP non-magnetic connector operates at a temperature range of -55 to 125 deg C. This threaded plug coaxial RF connector has a maximum insertion loss of 0.12 dB. The Pasternack non-magnetic SMP plug connector has a maximum operating voltage of 250 Vrms and a dielectric withstanding voltage of 750 Vrms.
