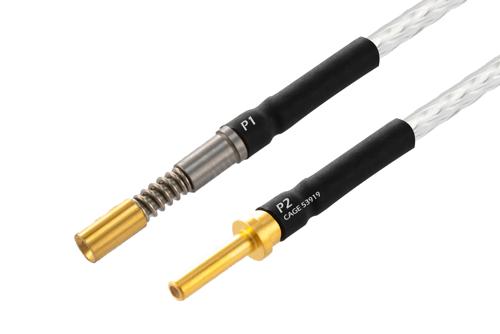

The PE3M0445 from Pasternack is a D38999 contact cable assembly that is built with a size 16 SMPS pin contact connection on one end and a SMPS socket connector on the other. Pasternack MIL-DTL-38999 (also known as D38999 or 38999) coaxial cable assembly products are used in applications requiring high quality such as laboratory RF test and measurement, rugged and designed for defense/military, production environments, general use, etc. This SMPS to SMPS cable assembly is a part of one of the largest selections of same-day ship coaxial cables for RF, microwave, and millimeter wave interconnect solutions. This high frequency D38999 cable assembly operates at a maximum frequency of 20 GHz.
This radio frequency cable assembly can withstand temperatures ranging from -65 to 100 degrees C. Our SMPS pin to SMPS socket cable has a maximum VSWR of 1.4:1. This RF cable assembly with a 0.5-inch diameter has copper clad steel as the cable’s inner conducting material and PTFE dielectric type. The PE3M0445 in-series RF cable has dB of minimum RF shielding.
SMPS pin to SMPS socket cable assembly is built with PE-SR047FL, which is a formable coax type. The Pasternack PE3M0445 formable cable assembly has a 50 Ohm impedance and is single shielded. Additional dimensions, specifications, and CAD drawings for this SMPS to SMPS RF cable are available on our downloadable PDF datasheet.
SMPS pin to SMPS socket cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy high quality custom RF cable assembly products for rugged and MIL-STD designed military/defense, aerospace, outdoor and harsh environment, microwave and millimeter wave radio transmitter receiver, component inter-connection and more for RF test & measurement labs, telecom, phase stable, phase and delay matching, and other radio frequency applications can be manufactured. Variations of SMPS cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. For further information on similar products, our expert technical support and trained sales team can get you the ideal SMPS to SMPS RF cable assembly as per your requirements.
