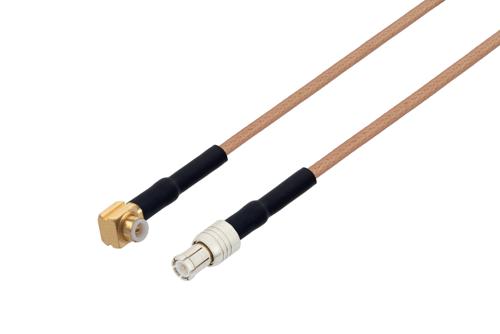

Pasternack’s PE3W20290/HS right angle MMBX plug to MCX plug RF cable assembly using RG178 coax is part of one of the largest selections of same-day ship coaxial cables for RF, microwave, and millimeter wave interconnect solutions. These coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The MMBX plug to MCX plug cable, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom MMBX to MCX cable assembly orders will ship the same business day as well.
Pasternack RF coax cable assembly is built with a right angle MMBX cable connection on one end and a MCX cable connection on the other. Our MMBX to MCX cable assembly has a plug gender on end 1 and a plug on end 2. PE3W20290/HS can also be known as a right angle MMBX male to MCX male cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly with a 0.5-inch diameter has copper clad steel as the cable’s inner conducting material and PTFE dielectric type.
This cable assembly employs durable and flexible materials, and with a 0.4-inch bend radius, it can withstand repetitive movements, ensuring reliable performance over extended periods. Our PE3W20290/HS RF cable has an FEP jacket of 0.072-inch diameter. This radio frequency cable assembly can withstand temperatures ranging from -55 to 155 degrees C. The flexible RF cable has a between series connection. Our right angle MMBX plug to MCX plug cable has a maximum VSWR of 1.4:1.
This PE3W20290/HS MMBX male to MCX male cable assembly is built with RG178, which is a flexible coax type. The Pasternack flexible MMBX cable assembly is manufactured with right angle MMBX to MCX cable connectors, has a 50 Ohm impedance, and is single shielded. Both the connectors have a crimp/solder attachment method and a brass body. Additional dimensions, specifications, and CAD drawings for this RF cable are available on our downloadable PDF datasheet. PE3W20290/HS can also be used in the other direction and will be a MCX plug to right angle MMBX plug cable assembly if the opposite connectivity is required.
This MMBX right angle male to MCX male cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality MMBX to MCX cable assembly for quick shipment worldwide. Variations of MMBX and MCX cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High-quality custom RF cable assembly products for microwave and millimeter wave radio transmitters, receivers, antenna jumpers, component interconnections, RF test and measurement labs, military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment, and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal MMBX to MCX RF cable assembly as per your requirements.
