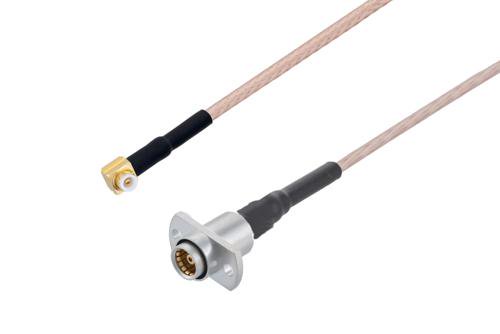

Radio frequency assembly snap-on MMBX plug right angle to slide-on BMA jack 2 hole flange cable using RG316 coax with heatshrink from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The snap-on MMBX plug right angle to slide-on BMA jack 2 hole flange cable using RG316 coax with heatshrink, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom MMBX to BMA cable assembly orders will ship the same business day as well.
Pasternack RF coax cable assembly is built with a right angle MMBX cable connection on one end and a BMA 2 hole flange cable connection on the other. Our right angle MMBX to BMA cable assembly has a plug gender on end 1 and a jack on end 2. PE3W17100/HS can also be known as a right angle MMBX male to BMA female cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly with a 0.5-inch diameter has copper clad steel as the cable's inner conducting material and PTFE dielectric type.
Our PE3W17100/HS RF cable has a FEP jacket of 0.102-inch diameter. This radio frequency cable assembly can withstand temperatures ranging from -55 to 125 degrees C. The flexible RF cable has a between series connection. Our right angle MMBX plug to 2 hole flange BMA jack cable has a maximum VSWR of 1.4:1.
MMBX male to BMA female cable assembly PE3W17100/HS is built with RG316 which is a flexible coax type. The Pasternack flexible MMBX cable assembly is manufactured with right angle MMBX to BMA cable connectors, has a 50 Ohm impedance, and is single shielded. Both the connectors have a crimp/solder attachment method and a brass body. Additional dimensions, specifications and CAD drawings for this RF cable are available on our downloadable PDF datasheet. PE3W17100/HS can also be used in the other direction and will be a BMA jack 2 hole flange to right angle MMBX plug cable assembly if the opposite connectivity is required.
MMBX right angle male to BMA female 2 hole flange cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality MMBX to BMA cable assembly for quick shipment worldwide. Variations of MMBX and BMA cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal MMBX to BMA RF cable assembly as per your requirements.
