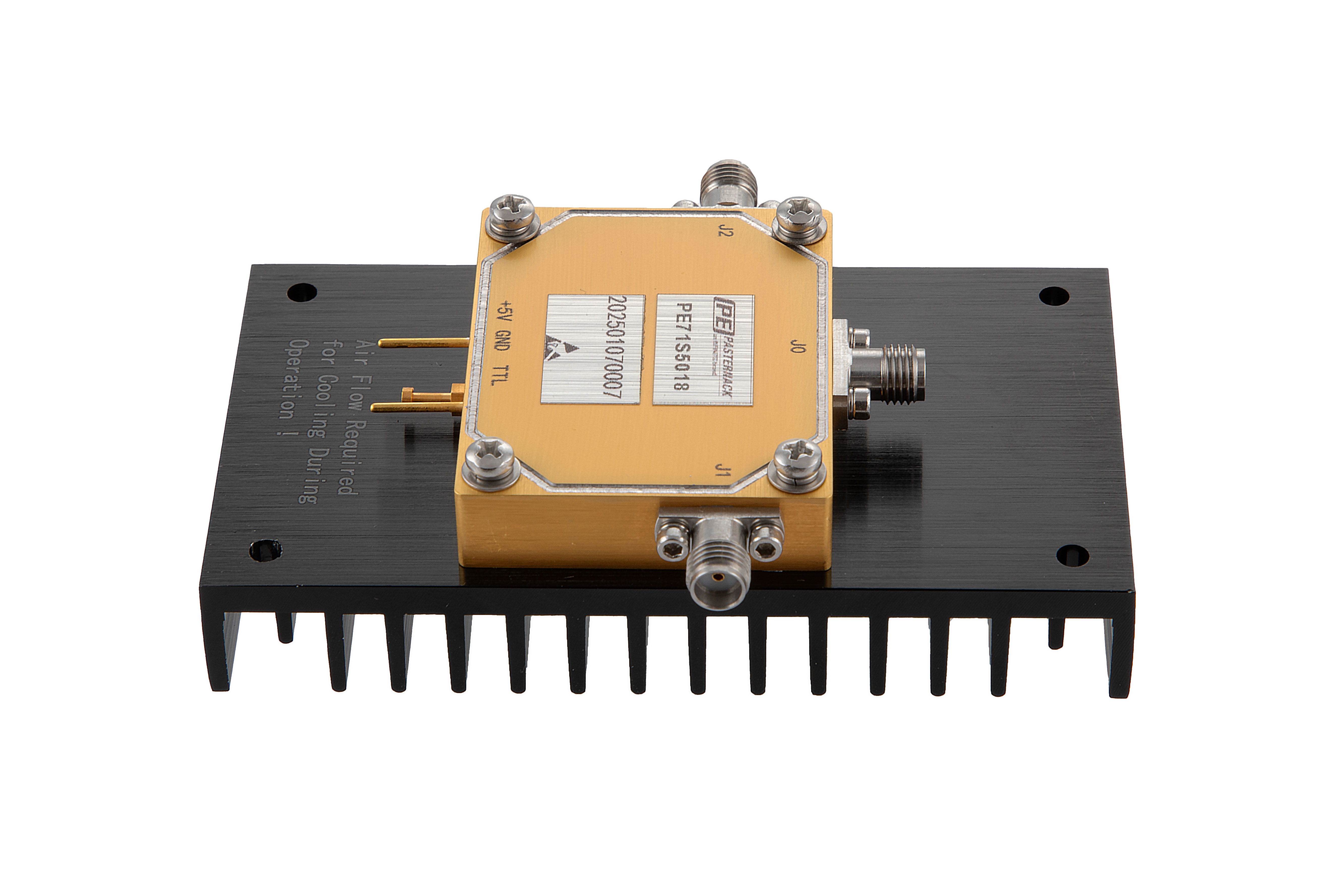

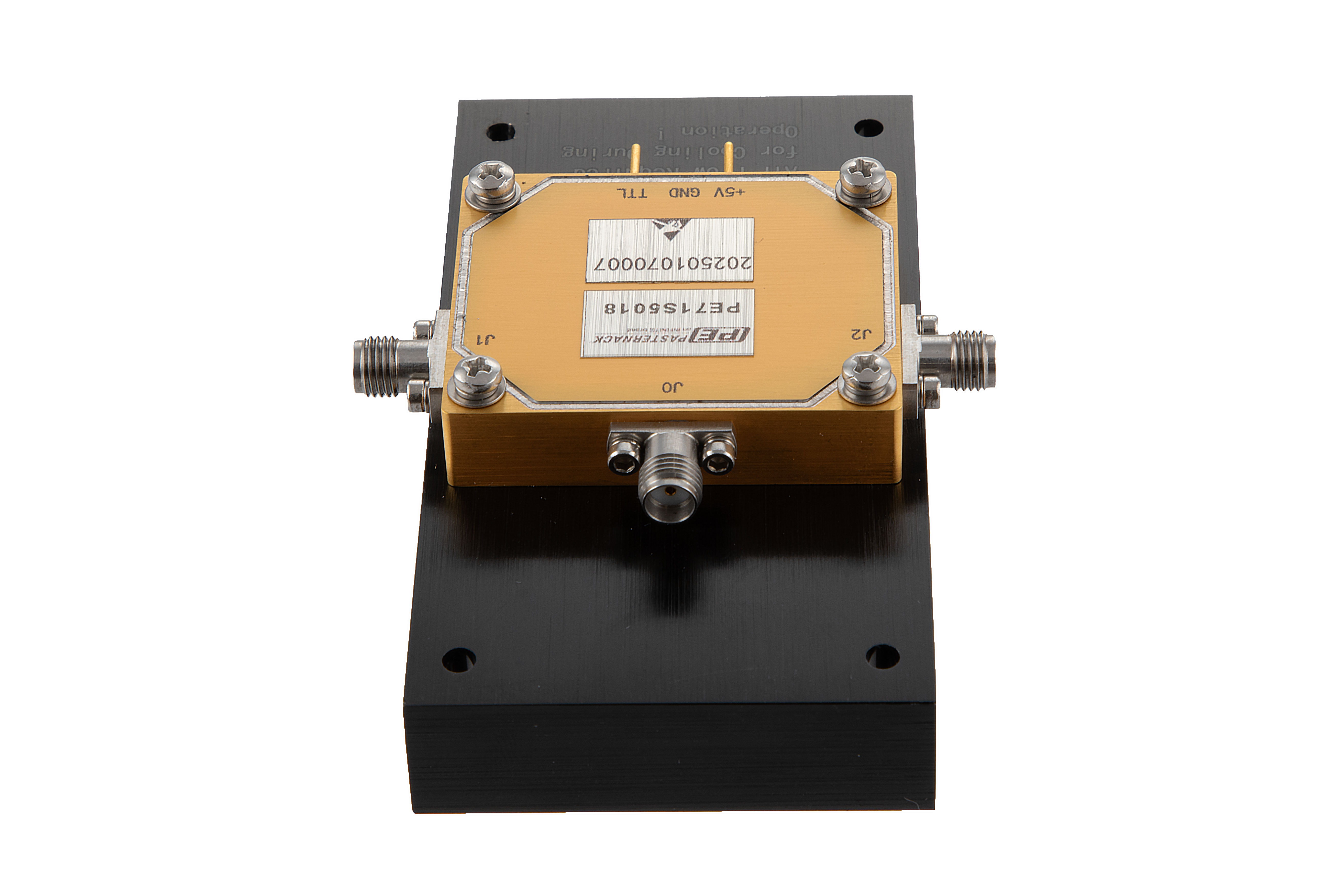

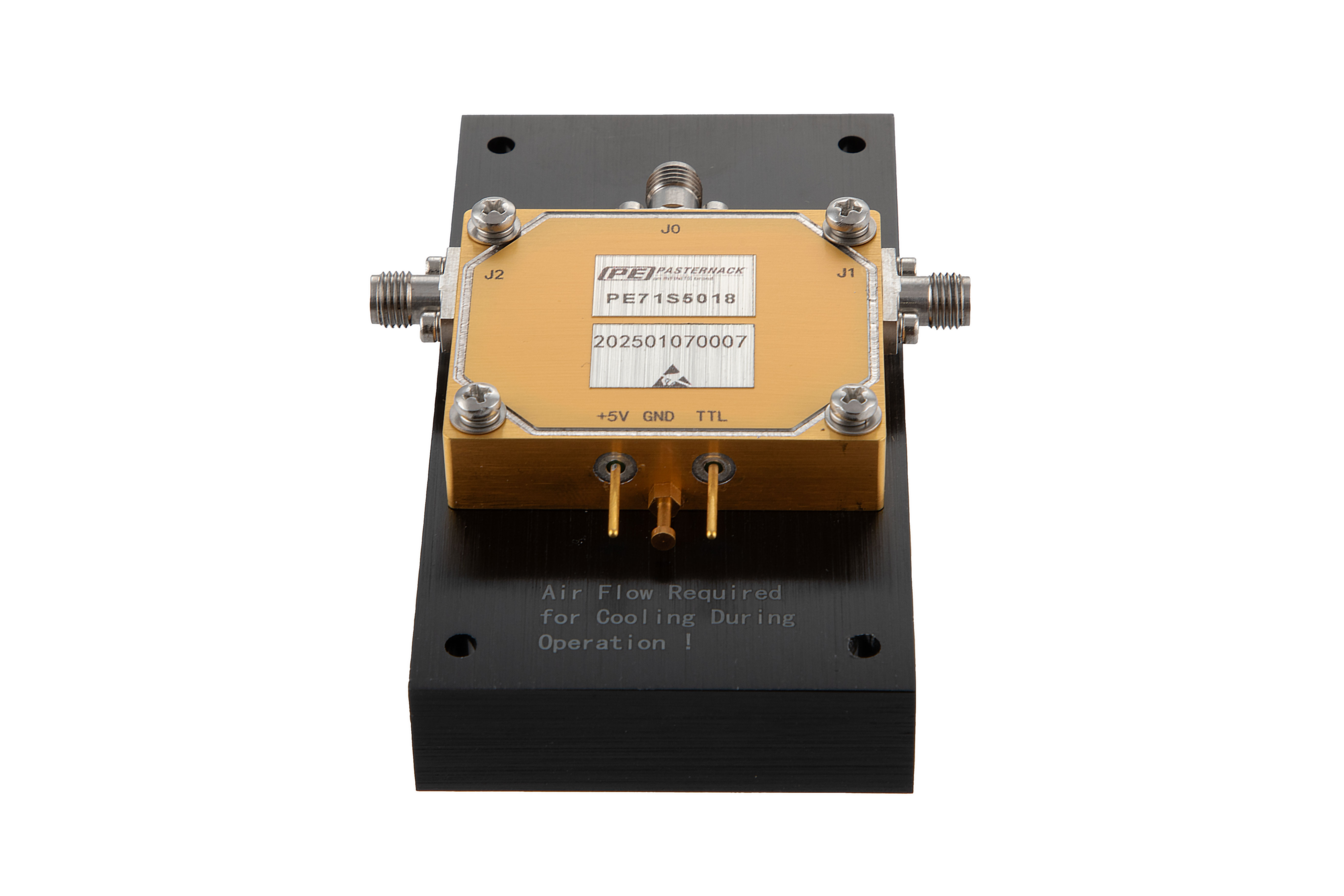

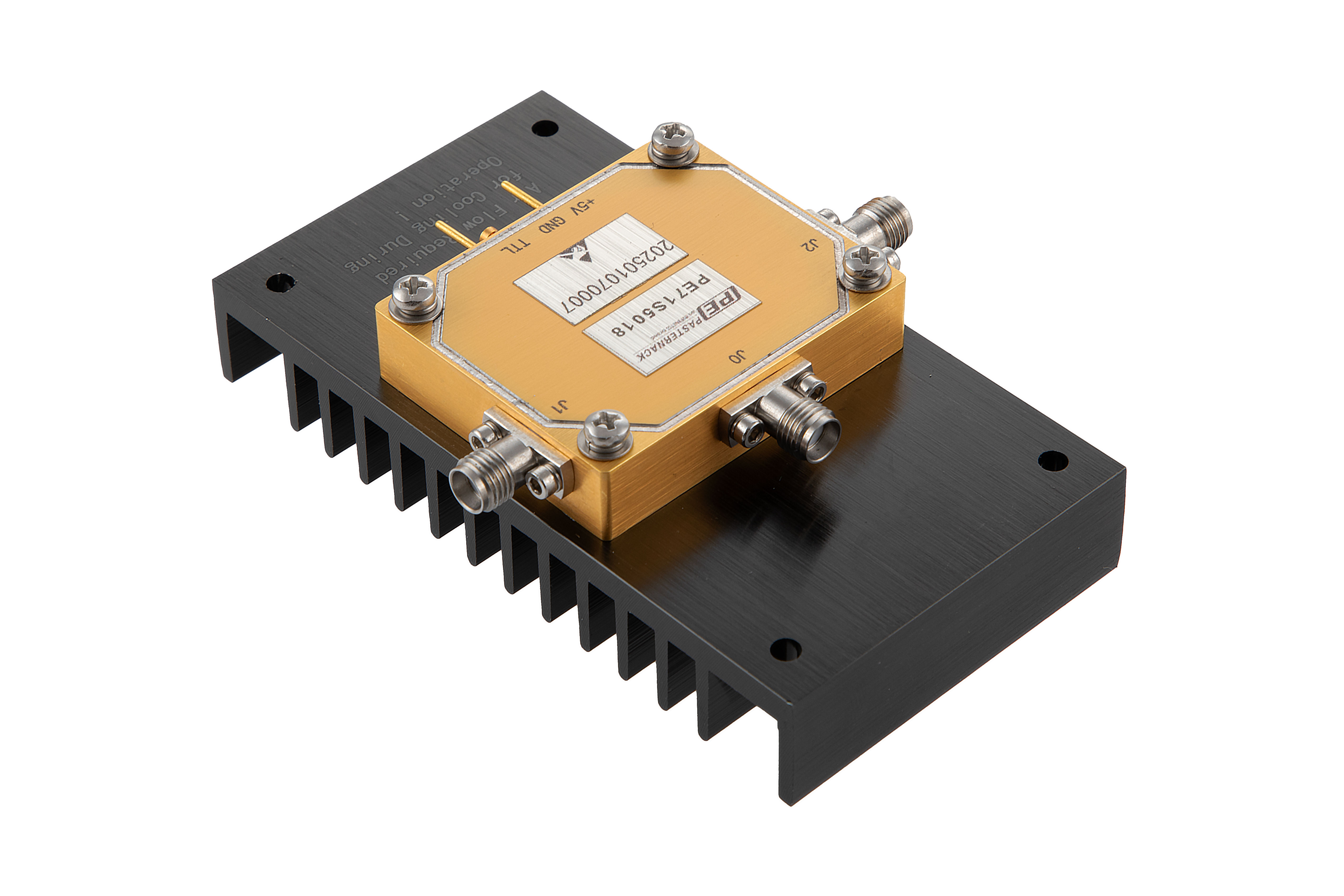

The PE71S5018 PIN diode switch from Pasternack has a reflective design with a SP2T switch configuration. Our RF reflective PIN diode switch uses SMA connectors at 50 Ohm impedance. This SMA PIN diode reflective switch has a minimum frequency of 8 GHz and a maximum frequency of 18 GHz. The Pasternack PIN diode reflective RF switch is rated at a switching speed of 350 ns. Make your online purchase right now to take advantage of our same-business-day shipping.
This reflective SP2T radio frequency PIN diode switch has a female gender configuration and is designed to withstand a series of environmental test conditions including altitude, vibration, shock and humidity. Our PE71S5018 PIN diode switch has a gold-plated aluminum body. This PIN diode switch is rated at a 5 Vdc voltage. Our wideband RF PIN diode switch operates within a temperature range of -40 deg C to 85 deg C.
This 50 Ohm SP2T PIN diode switch has a 2:1 maximum VSWR (Voltage Standing Wave Ratio). The maximum insertion loss of this SMA reflective switch is 3.2 dB with a minimum isolation of 35 dB. Additional specifications for this wideband SP2T PIN diode switch can be found on its PDF specification datasheet and CAD drawings.
The reflective PIN diode radio frequency switch PE71S5018 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our reflective SMA coaxial PIN diode switch can ship worldwide the same day that it is bought as with our other available RF parts. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the perfect wideband RF PIN diode switch for your requirement.
