Medium Power SPDT Electromechanical Relay Switches

Check out our new RF calculators & conversion tools...

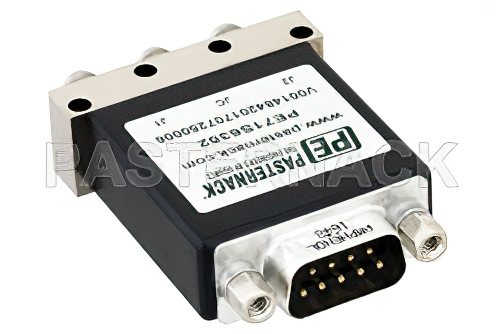

SPDT Electromechanical Relay Latching Switch, DC to 18 GHz, up to 90W, 12V, SMA

Product ID: PE71S6352
SPDT Electromechanical Relay Latching Switch, DC to 18 GHz, up to 90W, 12V, SMA


Image Views:  SPDT Electromechanical Relay Latching Switch, DC to 18 GHz, up to 90W, 12V, SMA high resolution
Zoomalternate image
View 2


Click for:PE71S6352 Datasheet
Available Quantity: 10
Pricing Table
QUANTITYPRICE
1-9$301.31
10-24$286.24
25-49$271.18
50+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector SeriesSMA
Connector GenderFemale
Switch DesignSPDT
Minimum FrequencyDC
Maximum Frequency18 GHz
Impedance50 Ohm
Maximum Input Power (CW)60 Watts
Maximum VSWR1.4:1
Maximum Insertion Loss0.35 dB
Minimum Isolation65 dB


SPDT Electromechanical Relay Latching Switch, DC to 18 GHz, up to 90W, 12V, SMA

PE71S6352 electromechanical RF relay switch from Pasternack is a SPDT design. Our SPDT electromechanical RF switch uses SMA connectors at 50 Ohm. This SMA RF relay SPDT switch has a maximum frequency of 18 GHz and maximum power of 60 Watts. The Pasternack radio frequency SPDT SMA electro-mechanical relay switch is rated at a control voltage of 12 Volts, indicator voltage and switching speed of 20ms.

SMA SPDT electro mechanical RF relay switch features with an isolation minimum of 65 dB. SPDT electromechanical relay radio frequency switch PE71S6352 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our SPDT SMA coaxial RF relay electromechanical switch can ship worldwide the same day that it is bought as with our other available RF parts.
