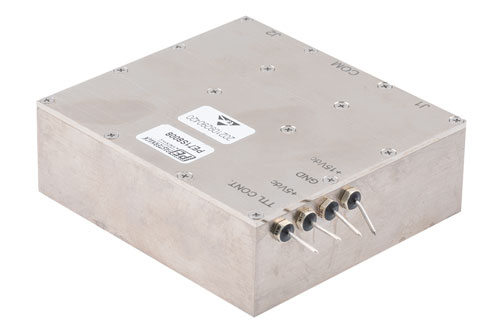

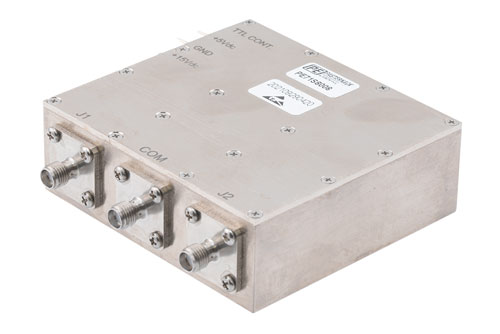

PE71S8008 PIN diode switch from Pasternack is a Absorptive design. Our RF Absorptive PIN diode switch uses SMA connectors at 50 Ohm. This SMA PIN diode Absorptive switch has a minimum frequency of 500 MHz and a maximum frequency of 3 GHz. The Pasternack PIN diode Absorptive RF switch is rated at a switching speed of 10,000 ns and a maximum input power of 30 Watts (+44.8 dBm ).
Insertion loss maximum of this SMA Absorptive switch is 1.25 dB with an isolation minimum of 55 dB. Absorptive PIN diode radio frequency switch PE71S8008 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our Absorptive SMA coaxial PIN diode switch can ship worldwide the same day that it is bought as with our other available RF parts.
