SPST PIN Diode Switch Operating From 10 MHz to 1,000 MHz Up to 0.1 Watts (+20 dBm) and Field Replaceable SMA

Product ID: PE71S6258
SPST PIN Diode Switch Operating From 10 MHz to 1,000 MHz Up to 0.1 Watts (+20 dBm) and Field Replaceable SMA

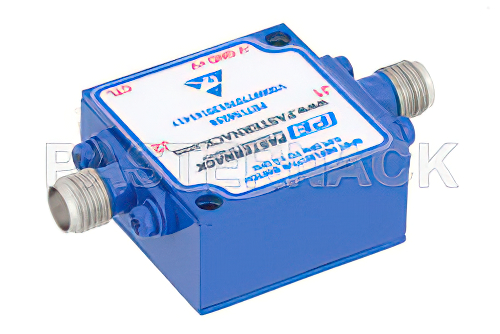

Image Views:  SPST PIN Diode Switch Operating From 10 MHz to 1,000 MHz Up to 0.1 Watts (+20 dBm) and Field Replaceable SMA high resolution
Zoomalternate image
View 2


Click for:PE71S6258 Datasheet
Click for:PE71S6258 REACH Cert
Available Quantity: 2
Pricing Table
QUANTITYPRICE
1-1$1,545.63
2-4$1,452.89
5-9$1,375.61
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector SeriesSMA
Connector GenderFemale
Switch DesignReflective
Minimum Frequency10 MHz
Maximum Frequency1,000 MHz
Impedance50 Ohm
Maximum Input Power0.1 Watts


SPST PIN Diode Switch Operating From 10 MHz to 1,000 MHz Up to 0.1 Watts (+20 dBm) and Field Replaceable SMA

PE71S6258 PIN diode switch from Pasternack is a Reflective design. Our RF Reflective PIN diode switch uses SMA connectors at 50 Ohm. This SMA PIN diode Reflective switch has a minimum frequency of 10 MHz and a maximum frequency of 1,000 MHz. The Pasternack PIN diode Reflective RF switch is rated at a switching speed of 200 ns and a maximum input power of 0.1 Watts (+20 dBm ).

Insertion loss maximum of this SMA Reflective switch is dB with an isolation minimum of dB. Reflective PIN diode radio frequency switch PE71S6258 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our Reflective SMA coaxial PIN diode switch can ship worldwide the same day that it is bought as with our other available RF parts.
