SPST PIN Diode Switch Operating From 1 GHz to 18 GHz Up to 0.1 Watts (+20 dBm) and Field Replaceable SMA

Product ID: PE71S6264
SPST PIN Diode Switch Operating From 1 GHz to 18 GHz Up to 0.1 Watts (+20 dBm) and Field Replaceable SMA

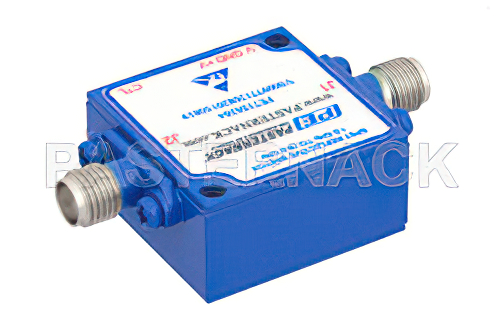

Image Views:  SPST PIN Diode Switch Operating From 1 GHz to 18 GHz Up to 0.1 Watts (+20 dBm) and Field Replaceable SMA high resolution
Zoomalternate image
View 2


Click for:PE71S6264 Datasheet
Click for:PE71S6264 RoHS Cert
Click for:PE71S6264 REACH Cert
Available Quantity: 5
Pricing Table
QUANTITYPRICE
1-1$2,434.82
2-4$2,288.73
5-9$2,166.99
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector SeriesSMA
Connector GenderFemale
Switch DesignReflective
Minimum Frequency1,000 MHz
Maximum Frequency18 GHz
Impedance50 Ohm
Maximum Input Power0.1 Watts
Minimum Isolation65 dB


SPST PIN Diode Switch Operating From 1 GHz to 18 GHz Up to +20 dBm and Field Replaceable SMA

PE71S6264 PIN diode switch from Pasternack is a Reflective design. Our RF Reflective PIN diode switch uses SMA connectors at 50 Ohm. This SMA PIN diode Reflective switch has a minimum frequency of 1,000 MHz and a maximum frequency of 18 GHz. The Pasternack PIN diode Reflective RF switch is rated at a switching speed of 50 ns and a maximum input power of 0.1 Watts (+20 dBm ).

Insertion loss maximum of this SMA Reflective switch is dB with an isolation minimum of 65 dB. Reflective PIN diode radio frequency switch PE71S6264 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our Reflective SMA coaxial PIN diode switch can ship worldwide the same day that it is bought as with our other available RF parts.
