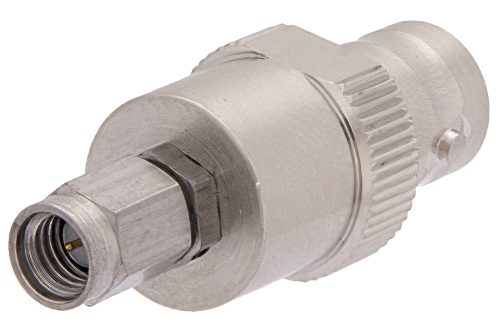

SSMA Male to BNC Female Adapter

Product ID: PE9250
SSMA Male to BNC Female Adapter

Image Views:  SSMA Male to BNC Female Adapter high resolution
Zoom


Click for:PE9250 Datasheet
Click for:PE9250 RoHS Cert
DISCONTINUED PRODUCT
Search for alternative
Adapters.

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SSMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 2BNC
Connector Gender 2Female
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Mount Method 2None


SSMA Male to BNC Female Adapter

SSMA adapter PE9250 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our SSMA to BNC adapter is a between series coaxial adapter design. This 50 Ohm SSMA adapter is precision manufactured to RF components industry specifications.

SSMA male to BNC female adapter is one of the many RF components that ship same day as they are ordered. PE9250 male SSMA to female BNC adapter has a straight body. This Pasternack straight SSMA coax adapter is a in-line RF adapter.

Our male SSMA to female BNC adapter PE9250 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This SSMA to BNC radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
