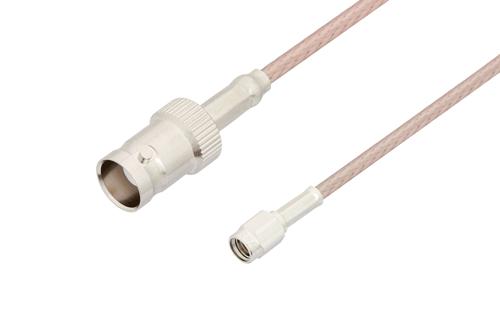

Radio frequency assembly SSMA male to BNC female cable using RG316 coax, LF solder from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The SSMA male to BNC female cable using RG316 coax, LF solder, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom SSMA to BNC cable assembly orders will ship the same business day as well.
Pasternack RF coax cable assembly is built with a SSMA cable connection on one end and a BNC cable connection on the other. Our SSMA to BNC cable assembly has a male gender on end 1 and a female on end 2. PE39638LF can also be known as a SSMA plug to BNC jack cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly with a 0.5-inch diameter has copper clad steel as the cable's inner conducting material and PTFE dielectric type.
Our PE39638LF RF cable has a FEP jacket of 0.102-inch diameter. This radio frequency cable assembly can withstand temperatures ranging from -55 to 165 degrees C. The flexible RF cable has a between series connection. Our SSMA male to BNC female cable has a maximum VSWR of 1.4:1.
SSMA plug to BNC jack cable assembly PE39638LF is built with RG316 which is a flexible coax type. The Pasternack flexible SSMA cable assembly is manufactured with SSMA to BNC cable connectors, has a 50 Ohm impedance, and is single shielded. Both the connectors have a crimp/solder attachment method and a brass body with nickel plating. Additional dimensions, specifications and CAD drawings for this RF cable are available on our downloadable PDF datasheet. PE39638LF can also be used in the other direction and will be a BNC female to SSMA male cable assembly if the opposite connectivity is required.
SSMA plug to BNC jack cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality SSMA to BNC cable assembly for quick shipment worldwide. Variations of SSMA and BNC cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal SSMA to BNC RF cable assembly as per your requirements.
