SSMB to BNC Adapters Standard Polarity

Check out our new RF calculators & conversion tools...

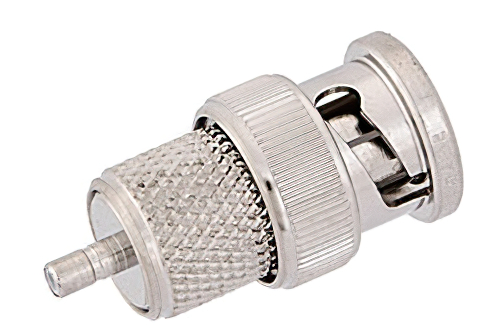

SSMB Jack to BNC Male Adapter

Product ID: PE9392
SSMB Jack to BNC Male Adapter

Image Views:  SSMB Jack to BNC Male Adapter high resolution
Zoom


Click for:PE9392 Datasheet
Click for:PE9392 RoHS Cert
Click for:PE9392 REACH Cert
Available Quantity: 16
Pricing Table
QUANTITYPRICE
1-24$89.30
25-49$83.05
50-99$76.80
100-249$71.44
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SSMB
Connector Gender 1Jack
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 2BNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Mount Method 2None
Connector Body Material 2Brass
Connector Body Plating 2Nickel


SSMB Jack to BNC Male Adapter

SSMB adapter PE9392 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our SSMB to BNC adapter is a between series coaxial adapter design. This 50 Ohm SSMB adapter is precision manufactured to RF components industry specifications.

SSMB jack to BNC male adapter is one of the many RF components that ship same day as they are ordered. PE9392 jack SSMB to male BNC adapter has a straight body. This Pasternack straight SSMB coax adapter is a in-line RF adapter.

Our jack SSMB to male BNC adapter PE9392 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This SSMB to BNC radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
