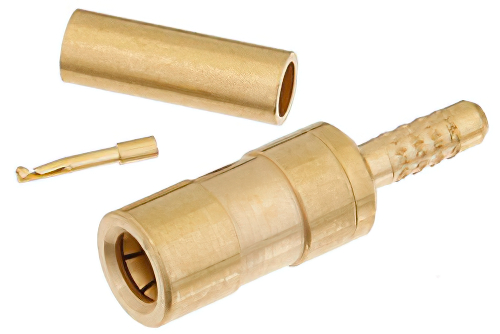

PE4019 SSMB plug coaxial connector has an interface type of SSMB plug which is compatible with RG178 and RG196 cables and has an impedance of 50 Ohms. Pasternack’s SSMB plug connector uses crimp/solder as an attachment method. Our plug SSMB coaxial connector provides a maximum frequency of 4 GHz. This SSMB plug RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online cable creator.
The Pasternack SSMB plug coaxial connector has a PTFE dielectric type and a VSWR of 1.3:1. Pasternack’s SSMB coaxial connector has a brass body with gold plating. Our PE4019 SSMB connector uses beryllium copper inner and outer contacts. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
Our high-quality PE4019 features a 3 µin minimum body plating specification. The PE4019 SSMB connector operates at a temperature range of -65 to 165 deg C. This connector has gold inner and outer contact plating. The Pasternack SSMB plug connector has a maximum operating voltage of 250 Vrms. Our SSMB plug connector has a length of 0.745 inches, a width of 0.19 inches, and a weight of 0.008 lbs.
This Pasternack plug SSMB connector will ship the same business day as purchased. Our SSMB plug connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
