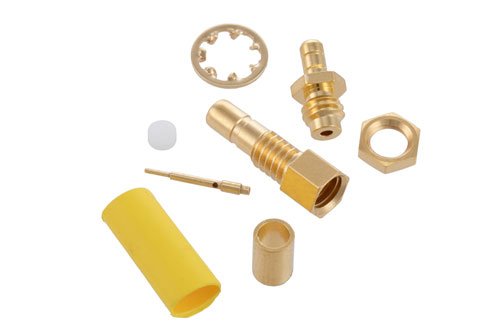

SSMB Jack Bulkhead Mount Connector Crimp/Solder Attachment for RG178, RG196, .126 inch D Hole

Name: SSMB Jack Bulkhead Mount Connector Crimp/Solder Attachment for RG178, RG196, .126 inch D Hole
Brand: Pasternack
SKU: PE4337

Product ID: PE4337

Pricing

Quantity	Price
1-24	$44.39
25-49	$42.17
50-99	$39.95
100-249	$38.18
250+	Call Us

* All Prices are in US Dollars and do not include duties

Buy

How many?

Available Quantity: 22

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties

View
Datasheet

3D CAD
Model
(.step)

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Polarity	Standard
Connector Series	SSMB
Connector Gender	Jack
Impedance	50 Ohm
Body Style	Straight
Attachment Method	Crimp/Solder
Mount Method	Bulkhead
Minimum Frequency	DC
Maximum Frequency	12.4 GHz
Interface Type 1	RG178
Interface Type 2	RG196

Description

SSMB Jack Bulkhead Mount Connector Crimp/Solder Attachment for RG178, RG196, .126 inch D Hole

PE4337 SSMB jack bulkhead coaxial connector has an interface type of RG178, RG196 and a 50 Ohm impedance. Pasternack SSMB jack bulkhead connector uses shield/contact crimp/solder as an attachment method. Our jack SSMB coaxial connector provides a minimum frequency of DC and a maximum frequency of 12.4 GHz.

The Pasternack SSMB jack bulkhead coaxial connector has a PTFE dielectric type and a VSWR of 1.5. The Pasternack SSMB coaxial connector has a brass body with gold plating. Our PE4337 SSMB connector uses beryllium copper contact. This SSMB jack bulkhead coaxial RF connector is REACH compliant.

This Pasternack jack SSMB bulkhead connector will ship the same day as purchased. Our bulkhead SSMB jack connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom SSMB connector cable assemblies that will ship the same day as well.
