SSMB Plug Straight Connectors

Check out our new RF calculators & conversion tools...

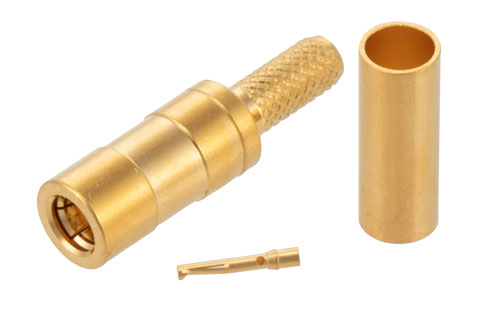

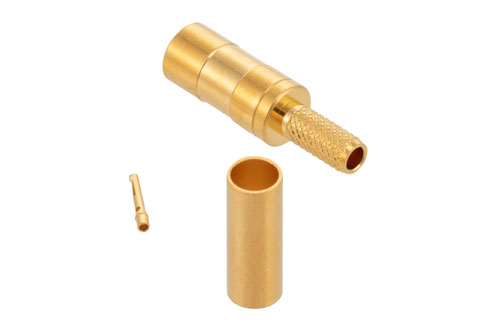

SSMB Plug Connector Crimp/Solder Attachment for RG174, RG316, RG188, LMR-100, PE-B100, PE-C100, .100 inch

Product ID: PE4017
SSMB Plug Connector Crimp/Solder Attachment for RG174, RG316, RG188, LMR-100, PE-B100, PE-C100, .100 inch


Image Views:  SSMB Plug Connector Crimp/Solder Attachment for RG174, RG316, RG188, LMR-100, PE-B100, PE-C100, .100 inch high resolution
Zoomalternate image
View 2


Click for:PE4017 Datasheet
Click for:PE4017 RoHS Cert
Click for:PE4017 REACH Cert
Available Quantity: 1,666
Pricing Table
QUANTITYPRICE
1-24$28.69
25-49$26.68
50-99$24.67
100-249$22.95
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesSSMB
Connector GenderPlug
Impedance50 Ohm
Body StyleStraight
Attachment MethodCrimp/Solder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency6 GHz


SSMB Plug Connector Crimp/Solder Attachment For RG174, RG179, RG316, RG188

PE4017 SSMB plug coaxial connector has an interface type of RG174, RG179, RG316, RG188 and a 50 Ohm impedance. Pasternack SSMB plug connector uses shield/contact crimp/solder as an attachment method. Our plug SSMB coaxial connector provides a minimum frequency of DC and a maximum frequency of 6 GHz.

The Pasternack SSMB plug coaxial connector has a teflon dielectric type and a VSWR of 1.3. The Pasternack SSMB coaxial connector has a beryllium copper body with gold plating. Our PE4017 SSMB connector uses beryllium copper contact. This SSMB plug coaxial RF connector is RoHS and REACH compliant.

This Pasternack plug SSMB connector will ship the same day as purchased. Our SSMB plug connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom SSMB connector cable assemblies that will ship the same day as well.
