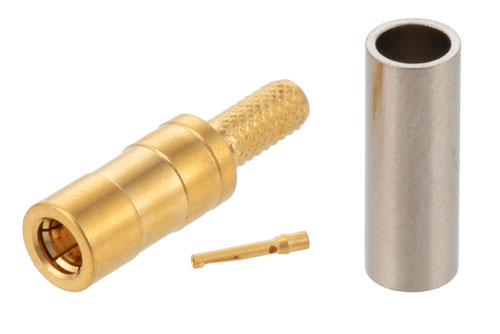

SSMB Plug Connector Crimp/Solder Attachment for RG188-DS, RG316-DS

Name: SSMB Plug Connector Crimp/Solder Attachment for RG188-DS, RG316-DS
Brand: Pasternack
SKU: PE45153
Availability: OutOfStock

Product ID: PE45153

Pricing

Quantity	Price
1-24	$47.59
25-49	$45.21
50-99	$42.83
100-249	$40.93
250+	Call Us

* All Prices are in US Dollars and do not include duties

Buy

How many?

Call for Availability

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties

View
Datasheet

3D CAD
Model
(.step)

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Polarity	Standard
Connector Series	SSMB
Connector Gender	Plug
Impedance	50 Ohm
Body Style	Straight
Attachment Method	Crimp/Solder
Mount Method	None
Minimum Frequency	DC
Maximum Frequency	6 GHz
Interface Type 1	RG188-DS
Interface Type 2	RG316-DS

Description

SSMB Plug Connector Crimp/Solder Attachment for RG188-DS, RG316-DS

PE45153 SSMB plug coaxial connector has an interface type of RG188-DS, RG316-DS and a 50 Ohm impedance. Pasternack SSMB plug connector uses shield/contact crimp/solder as an attachment method. Our plug SSMB coaxial connector provides a minimum frequency of DC and a maximum frequency of 6 GHz.

The Pasternack SSMB plug coaxial connector has a teflon dielectric type and a VSWR of 1.3. The Pasternack SSMB coaxial connector has a beryllium copper body with gold plating. Our PE45153 SSMB connector uses beryllium copper contact. This SSMB plug coaxial RF connector is REACH compliant.

This Pasternack plug SSMB connector will ship the same day as purchased. Our SSMB plug connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom SSMB connector cable assemblies that will ship the same day as well.
