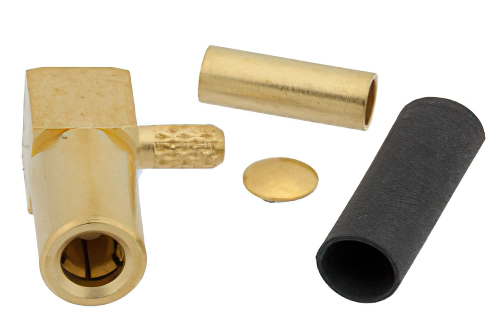

SSMB Plug Right Angle Connector Crimp/Solder Attachment For RG178, RG196

Product ID: PE4335
SSMB Plug Right Angle Connector Crimp/Solder Attachment For RG178, RG196


Image Views:  SSMB Plug Right Angle Connector Crimp/Solder Attachment For RG178, RG196 high resolution
Zoomalternate image
View 2


Click for:PE4335 Datasheet
Click for:PE4335 RoHS Cert
DISCONTINUED PRODUCT
Replaced By: PE45195

Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesSSMB
Connector GenderPlug
Impedance50 Ohm
Body StyleRight Angle
Attachment MethodCrimp/Solder
Mount MethodNone


SSMB Plug Right Angle Connector Crimp/Solder Attachment For RG178, RG196

PE4335 SSMB plug right angle coaxial connector has an interface type of RG178, RG196 and a 50 Ohm impedance. Pasternack SSMB plug connector uses shield/contact crimp/solder as an attachment method.

The Pasternack right angle SSMB plug coaxial connector has a ptfe dielectric type. The Pasternack SSMB coaxial connector has a brass body with gold plating. This SSMB plug right angle coaxial RF connector is REACH compliant.

This Pasternack right angle plug SSMB connector will ship the same day as purchased. Our SSMB right angle plug connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom SSMB connector cable assemblies that will ship the same day as well.
