SSMC Jack Right Angle Connectors

Check out our new RF calculators & conversion tools...

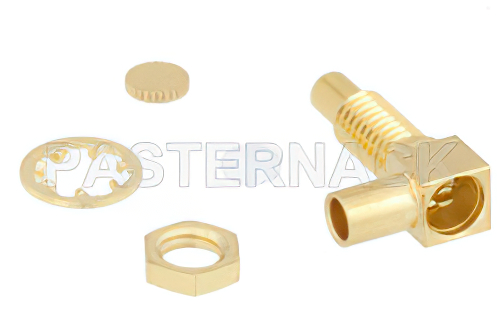

SSMC Jack Right Angle Bulkhead Mount Connector Crimp/Solder Attachment for PE-SR405AL, PE-SR405FL, PE-SR405FLJ, PE-SR405TN, RG405

Product ID: PE45387
SSMC Jack Right Angle Bulkhead Mount Connector Crimp/Solder Attachment for PE-SR405AL, PE-SR405FL, PE-SR405FLJ, PE-SR405TN, RG405


Image Views:  SSMC Jack Right Angle Bulkhead Mount Connector Crimp/Solder Attachment for PE-SR405AL, PE-SR405FL, PE-SR405FLJ, PE-SR405TN, RG405 high resolution
Zoomalternate image
View 2


Click for:PE45387 Datasheet
Click for:PE45387 RoHS Cert
Click for:PE45387 REACH Cert
Available Quantity: 50
Pricing Table
QUANTITYPRICE
1-24$32.86
25-49$30.56
50-99$28.26
100-249$26.29
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesSSMC
Connector GenderJack
Impedance50 Ohm
Body StyleRight Angle
Attachment MethodCrimp/Solder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency12.4 GHz


SSMC Jack Right Angle Connector Crimp/Solder Attachment for PE-SR405AL, PE-SR405FL, PE-SR405FLJ, PE-SR405TN, RG405

PE45387 SSMC jack right angle coaxial connector has an interface type of PE-SR405AL, PE-SR405FL, PE-SR405FLJ, PE-SR405TN, RG405 and a 50 Ohm impedance. Pasternack SSMC jack connector uses shield/contact crimp/solder as an attachment method. Our jack SSMC right angle coaxial connector provides a minimum frequency of DC and a maximum frequency of 12.4 GHz.

The Pasternack right angle SSMC jack coaxial connector has a teflon dielectric type and a VSWR of 1.63. The Pasternack SSMC coaxial connector has a brass body with gold plating. Our PE45387 SSMCright angle connector uses beryllium copper contact and a gold plating material. This SSMC jack right angle coaxial RF connector is RoHS and REACH compliant.

This Pasternack right angle jack SSMC connector will ship the same day as purchased. Our SSMC right angle jack connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom SSMC connector cable assemblies that will ship the same day as well.
