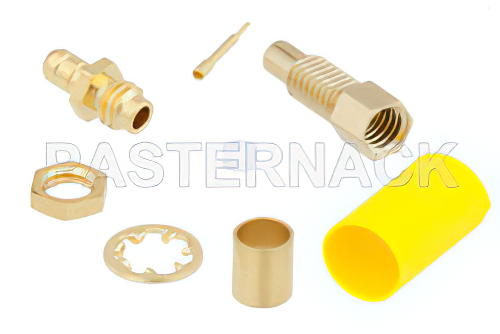

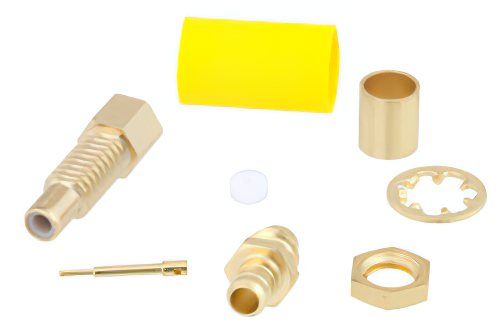

SSMC Jack Bulkhead Mount Connector Crimp/Solder Attachment for RG316-DS, RG188-DS

Product ID: PE45374
SSMC Jack Bulkhead Mount Connector Crimp/Solder Attachment for RG316-DS, RG188-DS


Image Views:  SSMC Jack Bulkhead Mount Connector Crimp/Solder Attachment for RG316-DS, RG188-DS high resolution
Zoomalternate image
View 2


Click for:PE45374 Datasheet
Click for:PE45374 RoHS Cert
Click for:PE45374 REACH Cert
DISCONTINUED PRODUCT
Remaining Quantity Available: 84
Pricing Table
QUANTITYPRICE
1-24$23.84
25-49$22.17
50-99$20.50
100-249$19.07
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesSSMC
Connector GenderJack
Impedance50 Ohm
Body StyleStraight
Attachment MethodCrimp/Solder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency12.4 GHz


SSMC Jack Connector Crimp/Solder Attachment for RG316-DS, RG188-DS

PE45374 SSMC jack coaxial connector has an interface type of RG316-DS, RG188-DS and a 50 Ohm impedance. Pasternack SSMC jack connector uses shield/contact crimp/solder as an attachment method. Our jack SSMC coaxial connector provides a minimum frequency of DC and a maximum frequency of 12.4 GHz.

The Pasternack SSMC jack coaxial connector has a teflon dielectric type and a VSWR of 1.49. The Pasternack SSMC coaxial connector has a beryllium copper body with gold plating. Our PE45374 SSMC connector uses beryllium copper contact and a gold plating material. This SSMC jack coaxial RF connector is RoHS and REACH compliant.

This Pasternack jack SSMC connector will ship the same day as purchased. Our SSMC jack connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom SSMC connector cable assemblies that will ship the same day as well.
