SSMC Jack Straight Connectors

Check out our new RF calculators & conversion tools...

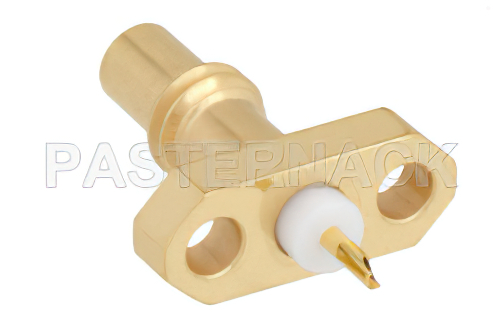

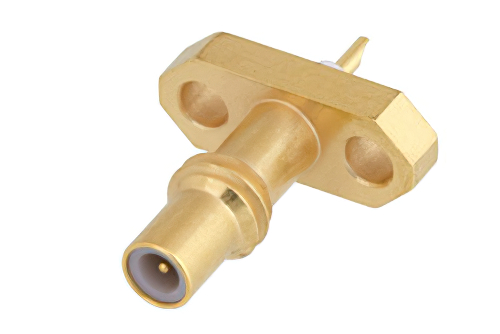

SSMC Jack Connector Solder Attachment 2 Hole Flange Mount Solder Cup Terminal

Product ID: PE45380
SSMC Jack Connector Solder Attachment 2 Hole Flange Mount Solder Cup Terminal


Image Views:  SSMC Jack Connector Solder Attachment 2 Hole Flange Mount Solder Cup Terminal high resolution
Zoomalternate image
View 2


Click for:PE45380 Datasheet
Click for:PE45380 RoHS Cert
Click for:PE45380 REACH Cert
Available Quantity: 49
Pricing Table
QUANTITYPRICE
1-9$109.65
10-24$104.17
25-49$98.69
50+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesSSMC
Connector GenderJack
Impedance50 Ohm
Body StyleStraight
Attachment MethodSolder
Mount Method2 Hole Flange
Minimum FrequencyDC
Maximum Frequency12.4 GHz


SSMC Jack Connector Solder Attachment 2 Hole Flange Mount Solder Cup Terminal

PE45380 SSMC jack 2 hole flange terminal connector has an interface type of solder cup and a 50 Ohm impedance. Pasternack SSMC jack 2 hole flange connector uses shield/contact solder as an attachment method. Our jack SSMC terminal connector provides a minimum frequency of DC and a maximum frequency of 12.4 GHz.

The Pasternack SSMC jack 2 hole flange terminal connector has a teflon dielectric type. The Pasternack SSMC terminal connector has a stainless steel body with gold plating. Our PE45380 SSMC connector uses beryllium copper contact and a gold plating material. This SSMC jack 2 hole flange terminal RF connector is RoHS and REACH compliant.

This Pasternack jack SSMC 2 hole flange connector will ship the same day as purchased. Our 2 hole flange SSMC jack connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom SSMC connector cable assemblies that will ship the same day as well.
