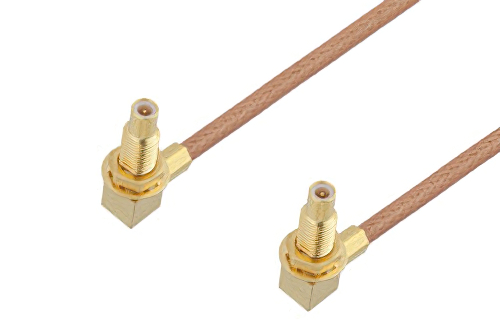

SSMC Jack Right Angle Bulkhead to SSMC Jack Right Angle Bulkhead Cable Using RG178 Coax

Product ID: PE3C4462

Length

Standard Length

Custom Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

* All cable assembly length tolerance are as provided on the datasheet. If not provided, cable length tolerances are within the IPC standards (2022-24) as shown here.

View
Datasheet

3D CAD
Model
(.step)

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	SSMC
Connector Gender 1	Jack
Connector Polarity 1	Standard
Connector Angle 1	Right Angle
Connector Mount Method 1	Bulkhead
Connector Impedance 1	50 Ohm
Connector Series 2	SSMC
Connector Gender 2	Jack
Connector Polarity 2	Standard
Connector Angle 2	Right Angle
Connector Mount Method 2	Bulkhead
Connector Impedance 2	50 Ohm
RF Cable Part Number	RG178B/U
RF Cable Type	RG178
RF Cable Impedance	50 Ohm

Description

SSMC Jack Right Angle Bulkhead to SSMC Jack Right Angle Bulkhead Cable Using RG178 Coax

PE3C4462 is a SSMC jack right angle bulkhead to SSMC jack right angle bulkhead cable using RG178 coax. This Pasternack SSMC jack right angle bulkhead to SSMC jack right angle bulkhead cable assembly uses a 50 Ohm SSMC for connector 1 and a 50 Ohm SSMC for connector 2. SSMC right angle to SSMC right angle coaxial cable assembly uses 90 degree right angle coax cable connector.

Our jack SSMC right angle bulkhead to jack SSMC right angle bulkhead cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C4462 SSMC jack right angle bulkhead to SSMC jack right angle bulkhead cable assembly is constructed with RG178 coax and the maximum VSWR is 1.5:1.
