SSMC Jack Right Angle Connectors

Check out our new RF calculators & conversion tools...

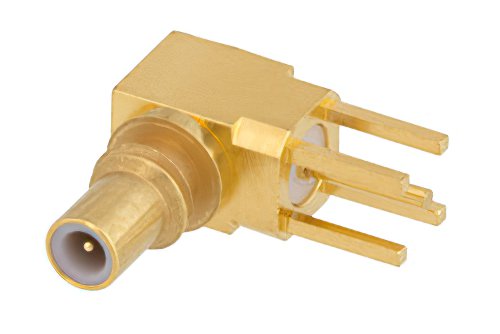

SSMC Jack Right Angle Connector Solder Attachment Surface Mount PCB

Product ID: PE45377
SSMC Jack Right Angle Connector Solder Attachment Surface Mount PCB


Image Views:  SSMC Jack Right Angle Connector Solder Attachment Surface Mount PCB high resolution
Zoomalternate image

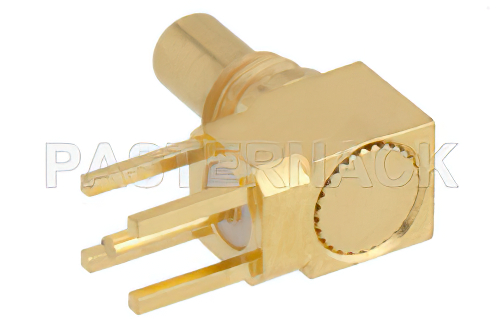

View 2


Click for:PE45377 Datasheet
Click for:PE45377 RoHS Cert
Click for:PE45377 REACH Cert
Available Quantity: 67
Pricing Table
QUANTITYPRICE
1-24$26.65
25-49$24.78
50-99$22.92
100-249$21.32
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesSSMC
Connector GenderJack
Impedance50 Ohm
Body StyleRight Angle
Attachment MethodSolder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency12.4 GHz


SSMC Jack Right Angle Connector Solder Attachment Surface Mount PCB

PE45377 SSMC jack right angle pcb connector has an interface type of surface mount and a 50 Ohm impedance. Pasternack SSMC jack connector uses shield/contact solder as an attachment method. Our jack SSMC right angle pcb connector provides a minimum frequency of DC and a maximum frequency of 12.4 GHz.

The Pasternack right angle SSMC jack pcb connector has a teflon dielectric type. The Pasternack SSMC pcb connector has a brass body with gold plating. Our PE45377 SSMCright angle connector uses beryllium copper contact and a gold plating material. This SSMC jack right angle pcb RF connector is RoHS and REACH compliant.

This Pasternack right angle jack SSMC connector will ship the same day as purchased. Our SSMC right angle jack connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom SSMC connector cable assemblies that will ship the same day as well.
