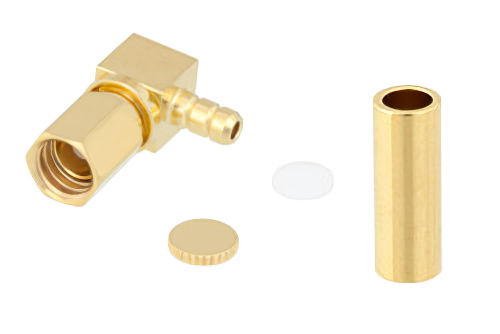

SSMC Plug Right Angle Connector Crimp/Solder Attachment for RG178, RG196

Name: SSMC Plug Right Angle Connector Crimp/Solder Attachment for RG178, RG196
Brand: Pasternack
SKU: PE45496

Product ID: PE45496

Pricing

Quantity	Price
1-24	$25.89
25-49	$24.60
50-99	$23.30
100-249	$22.27
250+	Call Us

* All Prices are in US Dollars and do not include duties

Buy

How many?

Available Quantity: 228

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties

View
Datasheet

3D CAD
Model
(.step)

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Polarity	Standard
Connector Series	SSMC
Connector Gender	Plug
Impedance	50 Ohm
Body Style	Right Angle
Attachment Method	Crimp/Solder
Mount Method	None
Minimum Frequency	DC
Maximum Frequency	12.4 GHz
Interface Type 1	RG178
Interface Type 2	RG196

Description

SSMC Plug Right Angle Connector Crimp/Solder Attachment for RG178, RG196

PE45496 SSMC plug right angle coaxial connector has an interface type of RG178, RG196 and a 50 Ohm impedance. Pasternack SSMC plug connector uses shield/contact crimp/solder as an attachment method. Our plug SSMC right angle coaxial connector provides a minimum frequency of DC and a maximum frequency of 12.4 GHz.

The Pasternack right angle SSMC plug coaxial connector has a teflon dielectric type and a VSWR of 1.57. The Pasternack SSMC coaxial connector has a brass body with gold plating. Our PE45496 SSMCright angle connector uses beryllium copper contact. This SSMC plug right angle coaxial RF connector is RoHS and REACH compliant.

This Pasternack right angle plug SSMC connector will ship the same day as purchased. Our SSMC right angle plug connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom SSMC connector cable assemblies that will ship the same day as well.
