SSMC Plug to SSMC Jack Right Angle Bulkhead Cable Using RG178 Coax

Product ID: PE3C4459
SSMC Plug to SSMC Jack Right Angle Bulkhead Cable Using RG178 Coax

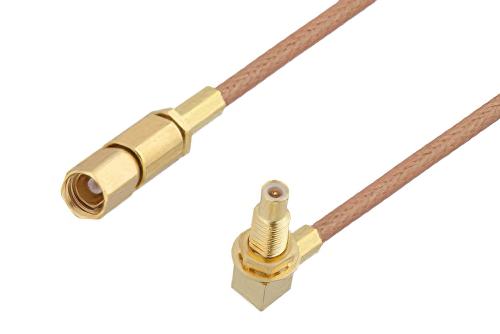

Image Views:  SSMC Plug to SSMC Jack Right Angle Bulkhead Cable Using RG178 Coax high resolution
Zoom


Click for:PE3C4459 Datasheet
Click for:PE3C4459 REACH Cert
Please Enter Length to Calculate Price
Standard Lengths
6 in.12 in.18 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SSMC
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2SSMC
Connector Gender 2Jack
Connector Polarity 2Standard
Connector Angle 2Right Angle
Connector Mount Method 2Bulkhead
Connector Impedance 250 Ohm
RF Cable Part NumberRG178B/U
RF Cable TypeRG178
RF Cable Impedance50 Ohm


SSMC Plug to SSMC Jack Right Angle Bulkhead Cable Using RG178 Coax

PE3C4459 is a SSMC plug to SSMC jack right angle bulkhead cable using RG178 coax. This Pasternack SSMC plug to SSMC jack right angle bulkhead cable assembly uses a 50 Ohm SSMC for connector 1 and a 50 Ohm SSMC for connector 2. SSMC to SSMC right angle coaxial cable assembly uses 90 degree right angle coax cable connector.

Our plug SSMC to jack SSMC right angle bulkhead cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C4459 SSMC plug to SSMC jack right angle bulkhead cable assembly is constructed with RG178 coax and the maximum VSWR is 1.5:1.
