SSMC Plug to SSMC Plug Cable Assemblies

Check out our new RF calculators & conversion tools...

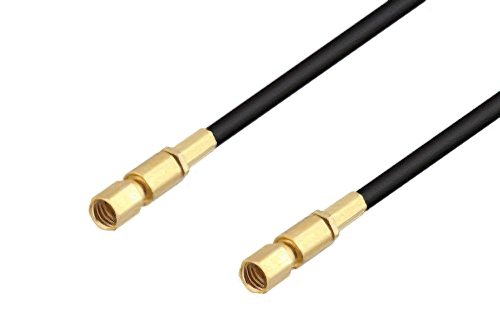

SSMC Plug to SSMC Plug Low Loss Cable Using LMR-100 Coax

Product ID: PE3C4419
SSMC Plug to SSMC Plug Low Loss Cable Using LMR-100 Coax

Image Views:  SSMC Plug to SSMC Plug Low Loss Cable Using LMR-100 Coax high resolution
Zoom


Click for:PE3C4419 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
6 in.12 in.18 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SSMC
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2SSMC
Connector Gender 2Plug
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberLMR-100A-PVC
RF Cable TypeLMR-100A
RF Cable Impedance50 Ohm


SSMC Plug to SSMC Plug Low Loss Cable Using LMR-100 Coax

PE3C4419 is a SSMC plug to SSMC plug cable using LMR-100A coax. This Pasternack SSMC plug to SSMC plug cable assembly uses a 50 Ohm SSMC for connector 1 and a 50 Ohm SSMC for connector 2.

Our plug SSMC to plug SSMC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C4419 SSMC plug to SSMC plug cable assembly is constructed with LMR-100A coax and the maximum VSWR is 1.5:1.

* LMR™ is a trademark of Times Microwave Systems.
