SSMC Plug Right Angle to SSMC Plug Right Angle Cable Assemblies

Check out our new RF calculators & conversion tools...

SSMC Plug Right Angle to SSMC Plug Right Angle Low Loss Cable Using LMR-100 Coax

Product ID: PE3C4421
SSMC Plug Right Angle to SSMC Plug Right Angle Low Loss Cable Using LMR-100 Coax

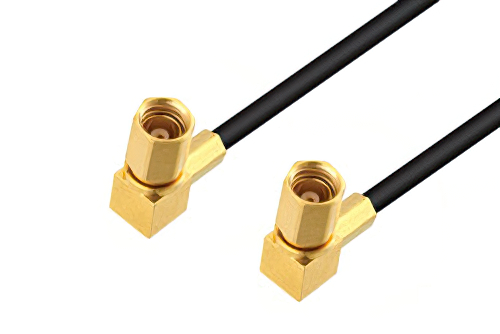

Image Views:  SSMC Plug Right Angle to SSMC Plug Right Angle Low Loss Cable Using LMR-100 Coax high resolution
Zoom


Click for:PE3C4421 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
6 in.12 in.18 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SSMC
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Angle 1Right Angle
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2SSMC
Connector Gender 2Plug
Connector Polarity 2Standard
Connector Angle 2Right Angle
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberLMR-100A-PVC
RF Cable TypeLMR-100A
RF Cable Impedance50 Ohm


SSMC Plug Right Angle to SSMC Plug Right Angle Low Loss Cable Using LMR-100 Coax

PE3C4421 is a SSMC plug right angle to SSMC plug right angle cable using LMR-100A coax. This Pasternack SSMC plug right angle to SSMC plug right angle cable assembly uses a 50 Ohm SSMC for connector 1 and a 50 Ohm SSMC for connector 2. SSMC right angle to SSMC right angle coaxial cable assembly uses 90 degree right angle coax cable connector.

Our plug SSMC right angle to plug SSMC right angle cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C4421 SSMC plug right angle to SSMC plug right angle cable assembly is constructed with LMR-100A coax and the maximum VSWR is 1.6:1.

* LMR™ is a trademark of Times Microwave Systems.
