Pasternack’s PE3C4469/HS SSMC plug to right angle SSMC plug RF cable assembly using RG316-DS coax is part of one of the largest selections of same-day ship coaxial cables for RF, microwave, and millimeter wave interconnect solutions. These coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The SSMC plug to SSMC plug cable, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom SSMC cable assembly orders will ship the same business day as well.

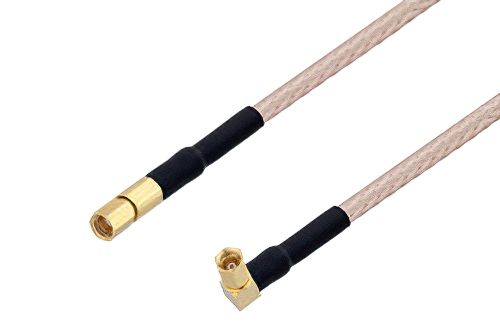

Pasternack RF coax cable assembly is built with a SSMC cable connection on one end and a right angle SSMC cable connection on the other. Our SSMC to SSMC cable assembly has a plug gender on end 1 and a plug on end 2. PE3C4469/HS can also be known as a SSMC male to right angle SSMC male cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly with a 0.156-inch diameter has copper clad steel as the cable’s inner conducting material and PTFE dielectric type.
SSMC to SSMC cable from Pasternack is ideal for applications including ssmc cable general purpose test, data acquisition systems, a, d conversion systems, ultra wideband digital receivers and software defined radio (sdr). This cable assembly employs durable and flexible materials, and with a 0.6-inch bend radius, it can withstand repetitive movements, ensuring reliable performance over extended periods. Our PE3C4469/HS RF cable has an FEP jacket of 0.114-inch diameter. This radio frequency cable assembly can withstand temperatures ranging from -55 to 165 degrees C. The flexible RF cable has an in-series connection. Our SSMC plug to right angle SSMC plug cable has a maximum VSWR of 1.6:1.
This PE3C4469/HS SSMC male to SSMC male cable assembly is built with RG316-DS, which is a flexible coax type. The Pasternack flexible SSMC cable assembly is manufactured with SSMC to right angle SSMC cable connectors, has a 50 Ohm impedance, and is double shielded. Both the connectors have a crimp/solder attachment method with gold plating. Additional dimensions, specifications, and CAD drawings for this RF cable are available on our downloadable PDF datasheet. PE3C4469/HS can also be used in the other direction and will be a right angle SSMC plug to SSMC plug cable assembly if the opposite connectivity is required.
This SSMC male to SSMC right angle male cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality SSMC to SSMC cable assembly for quick shipment worldwide. Variations of SSMC cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High-quality custom RF cable assembly products for microwave and millimeter wave radio transmitters, receivers, antenna jumpers, component interconnections, RF test and measurement labs, military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment, and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal SSMC to SSMC RF cable assembly as per your requirements.
