TNC Male to SSMC Plug Right Angle Cable Assemblies

Check out our new RF calculators & conversion tools...

SSMC Plug Right Angle to TNC Male Low Loss Cable Using LMR-100 Coax

Product ID: PE3C4435

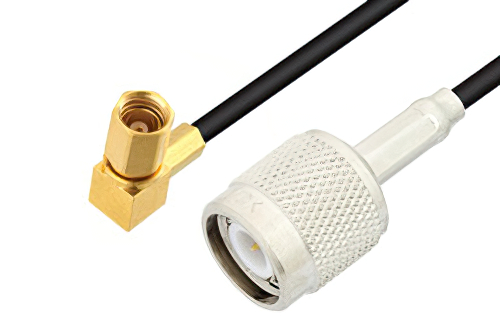

SSMC Plug Right Angle to TNC Male Low Loss Cable Using LMR-100 Coax

Image Views:  SSMC Plug Right Angle to TNC Male Low Loss Cable Using LMR-100 Coax high resolution
Zoom


Click for:PE3C4435 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
6 in.12 in.18 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SSMC
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Angle 1Right Angle
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2TNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberLMR-100A-PVC
RF Cable TypeLMR-100A
RF Cable Impedance50 Ohm


SSMC Plug Right Angle to TNC Male Low Loss Cable Using LMR-100 Coax

PE3C4435 is a SSMC plug right angle to TNC male cable using LMR-100A coax. This Pasternack SSMC plug right angle to TNC male cable assembly uses a 50 Ohm SSMC for connector 1 and a 50 Ohm TNC for connector 2. SSMC right angle to TNC coaxial cable assembly uses 90 degree right angle coax cable connector.

Our plug SSMC right angle to male TNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C4435 SSMC plug right angle to TNC male cable assembly is constructed with LMR-100A coax and the maximum VSWR is 1.5:1.

* LMR™ is a trademark of Times Microwave Systems.
