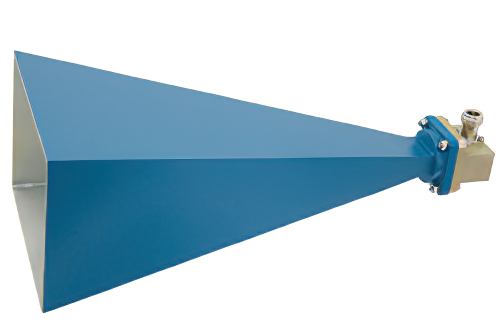

WR-102 Waveguide Standard Gain Horn Antenna Operating From 7 GHz to 11 GHz With a Nominal 20 dB Gain N Female Input
Product ID:
PE9857/NF-20
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Waveguide Size | WR-102 |
| Gain Min | 20 |
| Beam Width, 3dB V | 16.7 |
| Beam Width, 3dB H | 17 |
| Frequency, Min | 7 GHz |
| Frequency, Max | 11 GHz |
Description
WR-102 Standard Gain Horn Antenna Operating From 7 GHz to 11 GHz With a Nominal 20 dB Gain N Female Input Connector
PE9857/NF-20 standard gain horn antenna (also known as a waveguide horn antenna) is part of our huge selection of waveguide antennas. Pasternack standard gain horn antenna is manufactured with a WR-102 input and a waveguide to coaxial transition adapter. Our WR-102 standard gain horn antenna has a waveguide to coax adapter transition with a N connector input that is female gender.
WR-102 standard gain horn waveguide antenna with N input has a minimum frequency of 7 GHz and a maximum frequency of 11 GHz. Pasternack PE9857/NF-20 WR-102 waveguide horn standard gain antenna is rated at a nominal 20 dB gain. Our 20 dB standard gain horn WR-102 waveguide antenna with N adapter has a vertical beam width of 16.7 and horizontal of 17 degrees at 3 dB.
Pasternack is where to buy a WR-102 standard waveguide gain horn antenna with WR-102 input. This gain horn antenna is just one part of over 40,000 RF, microwave and millimeter wave guide components available and in-stock at our Irvine, CA United States warehouse. Our WR-102 standard waveguide horn antenna with N female interface can ship worldwide the same day that it is purchased as with our other available RF parts.
