WR102 7.0 GHz to 11.0 GHz Standard Gain Horns

Check out our new RF calculators & conversion tools...

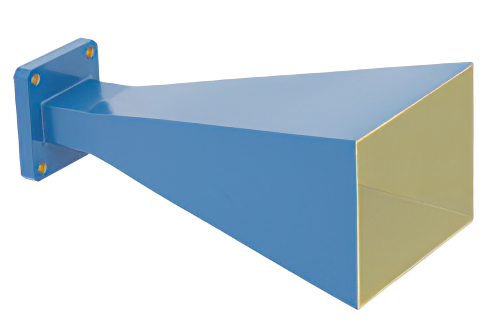

WR-102 Waveguide Standard Gain Horn Antenna Operating From 7 GHz to 11 GHz With a Nominal 15 dBi Gain With Square Cover Flange

Product ID: PE9857-15
WR-102 Waveguide Standard Gain Horn Antenna Operating From 7 GHz to 11 GHz With a Nominal 15 dBi Gain With Square Cover Flange


Image Views:  WR-102 Waveguide Standard Gain Horn Antenna Operating From 7 GHz to 11 GHz With a Nominal 15 dBi Gain With Square Cover Flange high resolution
Zoomalternate image
View 2


Click for:PE9857-15 Datasheet
Click for:PE9857-15 RoHS Cert
Click for:PE9857-15 REACH Cert
Available Quantity: 8
Pricing Table
QUANTITYPRICE
1-4$813.32
5-9$756.39
10-24$699.46
25-49$650.66
50+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Waveguide SizeWR-102
Gain Min15
Flange SizeSquare Cover
Frequency, Min7 GHz
Frequency, Max11 GHz
Beam Width V29.3
Beam Width H29.6


WR-102 Standard Gain Horn Antenna Operating From 7 GHz to 11 GHz With a Nominal 15 dB Gain With Square Cover Flange

PE9857-15 WR-102 standard gain horn antenna is also known as a waveguide horn. This WR-102 standard gain horn antenna has a 15 dB nominal gain and a square cover flange. Our 15 dB WR-102 horn antenna has a minimum frequency of 7 GHz and a maximum frequency of 11 GHz.

WR-102 standard gain horn waveguide antenna PE9857-15 has a vertical beam width of 29.3 and horizontal of 29.6 degrees at 3 dB. This WR-102 standard gain horn antenna with 15 dB is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-102 waveguide horn antenna can ship worldwide the same day as it is purchased as with our other available RF parts.
