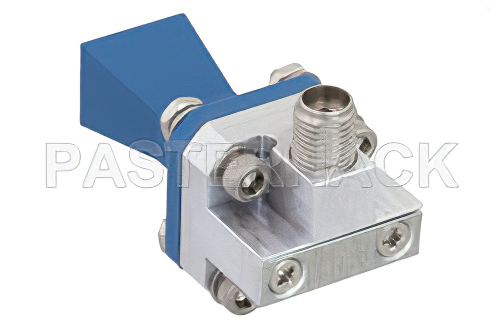

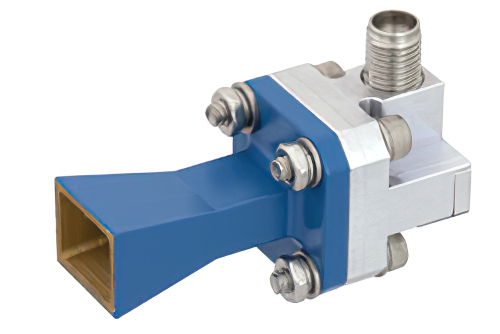

WR-28 Waveguide Standard Gain Horn Antenna Operating From 26.5 GHz to 40 GHz With a Nominal 10 dB Gain 2.92mm Female Input

Product ID: PE9850/2F-10

Pricing

QuantityPrice
1-1$1,703.95
2-4$1,635.79
5-9$1,567.63
10+Call Us

* All Prices are in US Dollars and do not include duties

Buy

Available Quantity: 29
Shipping Truck
Same-Day Shipping!
Order in the next hours!
Product discontinued when current inventory is depleted.
Replaced with PE9850B/2F-10.
* All Prices are in US Dollars and do not include duties

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Waveguide SizeWR-28
Gain Min10
Beam Width, 3dB V54.4
Beam Width, 3dB H54.2
Frequency, Min26.5 GHz
Frequency, Max40 GHz

Description

WR-28 Standard Gain Horn Antenna Operating From 26.5 GHz to 40 GHz With a Nominal 10 dB Gain 2.92mm Female Input Connector

PE9850/2F-10 standard gain horn antenna (also known as a waveguide horn antenna) is part of our huge selection of waveguide antennas. Pasternack standard gain horn antenna is manufactured with a WR-28 input and a waveguide to coaxial transition adapter. Our WR-28 standard gain horn antenna has a waveguide to coax adapter transition with a 2.92mm connector input that is female gender.

WR-28 standard gain horn waveguide antenna with 2.92mm input has a minimum frequency of 26.5 GHz and a maximum frequency of 40 GHz. Pasternack PE9850/2F-10 WR-28 waveguide horn standard gain antenna is rated at a nominal 10 dB gain. Our 10 dB standard gain horn WR-28 waveguide antenna with 2.92mm adapter has a vertical beam width of 54.4 and horizontal of 54.2 degrees at 3 dB.

Pasternack is where to buy a WR-28 standard waveguide gain horn antenna with WR-28 input. This gain horn antenna is just one part of over 40,000 RF, microwave and millimeter wave guide components available and in-stock at our Irvine, CA United States warehouse. Our WR-28 standard waveguide horn antenna with 2.92mm female interface can ship worldwide the same day that it is purchased as with our other available RF parts.
