WR 42 18.0 GHz to 26.5 GHz Standard Gain Horns

Check out our new RF calculators & conversion tools...

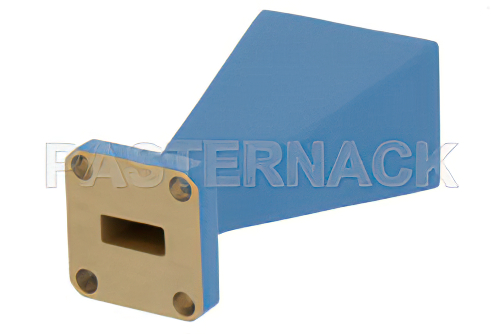

WR-42 Waveguide Standard Gain Horn Antenna Operating From 18 GHz to 26.5 GHz With a Nominal 15 dBi Gain With UG-597/U Square Cover Flange

Product ID: PE9852-15
WR-42 Waveguide Standard Gain Horn Antenna Operating From 18 GHz to 26.5 GHz With a Nominal 15 dBi Gain With UG-597/U Square Cover Flange


Image Views:  WR-42 Waveguide Standard Gain Horn Antenna Operating From 18 GHz to 26.5 GHz With a Nominal 15 dBi Gain With UG-597/U Square Cover Flange high resolution
Zoomalternate image
View 2


Click for:PE9852-15 Datasheet
Click for:PE9852-15 RoHS Cert
Click for:PE9852-15 REACH Cert
DISCONTINUED PRODUCT
Search for alternative
Gain Horns.

Key Specifications (Click on Data Sheet Above for Additional Details).
Waveguide SizeWR-42
Gain Min15
Flange SizeSquare Cover
Frequency, Min18 GHz
Frequency, Max26.5 GHz
Beam Width V31.3
Beam Width H31.5


WR-42 Standard Gain Horn Antenna Operating From 18 GHz to 26.5 GHz With a Nominal 15 dB Gain With Square Cover Flange

PE9852-15 WR-42 standard gain horn antenna is also known as a waveguide horn. This WR-42 standard gain horn antenna has a 15 dB nominal gain and a square cover flange. Our 15 dB WR-42 horn antenna has a minimum frequency of 18 GHz and a maximum frequency of 26.5 GHz.

WR-42 standard gain horn waveguide antenna PE9852-15 has a vertical beam width of 31.3 and horizontal of 31.5 degrees at 3 dB. This WR-42 standard gain horn antenna with 15 dB is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-42 waveguide horn antenna can ship worldwide the same day as it is purchased as with our other available RF parts.
