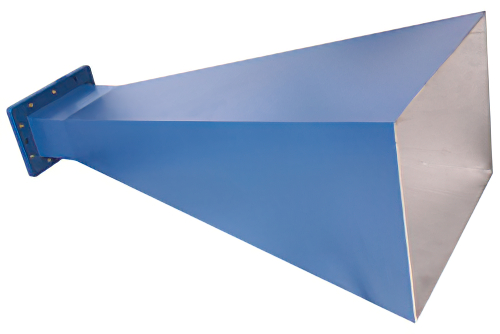

WR-430 Waveguide Standard Gain Horn Antenna Operating From 1.7 GHz to 2.6 GHz With a Nominal 15 dBi Gain With CPR-430F Flange
Product ID:
PE9864-15
Pricing
| Quantity | Price |
| 1-4 | $2,344.32 |
| 5-9 | $2,250.55 |
| 10-24 | $2,156.77 |
| 25+ | Call Us |
* All Prices are in US Dollars and do not include duties
Buy
Available Quantity: 2
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Waveguide Size | WR-430 |
| Gain Min | 15 |
| Flange Size | Square Cover |
| Frequency, Min | 1.7 GHz |
| Frequency, Max | 2.6 GHz |
| Beam Width V | 32 |
| Beam Width H | 33.1 |
Description
WR-430 Standard Gain Horn Antenna Operating From 1.7 GHz to 2.6 GHz With a Nominal 15 dB Gain With Square Cover Flange
PE9864-15 WR-430 standard gain horn antenna is also known as a waveguide horn. This WR-430 standard gain horn antenna has a 15 dB nominal gain and a square cover flange. Our 15 dB WR-430 horn antenna has a minimum frequency of 1.7 GHz and a maximum frequency of 2.6 GHz.
WR-430 standard gain horn waveguide antenna PE9864-15 has a vertical beam width of 32 and horizontal of 33.1 degrees at 3 dB. This WR-430 standard gain horn antenna with 15 dB is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-430 waveguide horn antenna can ship worldwide the same day as it is purchased as with our other available RF parts.
