WR430 1.70 GHZ to 2.60 GHz Standard Gain Horns

Check out our new RF calculators & conversion tools...

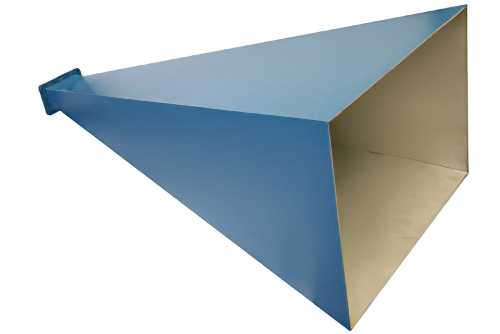

WR-430 Waveguide Standard Gain Horn Antenna Operating From 1.7 GHz to 2.6 GHz With a Nominal 20 dBi Gain With CPR-430F Flange

Product ID: PE9864-20
WR-430 Waveguide Standard Gain Horn Antenna Operating From 1.7 GHz to 2.6 GHz With a Nominal 20 dBi Gain With CPR-430F Flange

Image Views:  WR-430 Waveguide Standard Gain Horn Antenna Operating From 1.7 GHz to 2.6 GHz With a Nominal 20 dBi Gain With CPR-430F Flange high resolution
Zoom


Click for:PE9864-20 Datasheet
Click for:PE9864-20 REACH Cert
Available Quantity: 11
Pricing Table
QUANTITYPRICE
1-4$3,458.33
5-9$3,216.25
10-24$2,974.16
25-49$2,766.66
50+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Waveguide SizeWR-430
Gain Min20
Flange SizeSquare Cover
Frequency, Min1.7 GHz
Frequency, Max2.6 GHz
Beam Width V17.4
Beam Width H17.3


WR-430 Standard Gain Horn Antenna Operating From 1.7 GHz to 2.6 GHz With a Nominal 20 dB Gain With Square Cover Flange

PE9864-20 WR-430 standard gain horn antenna is also known as a waveguide horn. This WR-430 standard gain horn antenna has a 20 dB nominal gain and a square cover flange. Our 20 dB WR-430 horn antenna has a minimum frequency of 1.7 GHz and a maximum frequency of 2.6 GHz.

WR-430 standard gain horn waveguide antenna PE9864-20 has a vertical beam width of 17.4 and horizontal of 17.3 degrees at 3 dB. This WR-430 standard gain horn antenna with 20 dB is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-430 waveguide horn antenna can ship worldwide the same day as it is purchased as with our other available RF parts.
