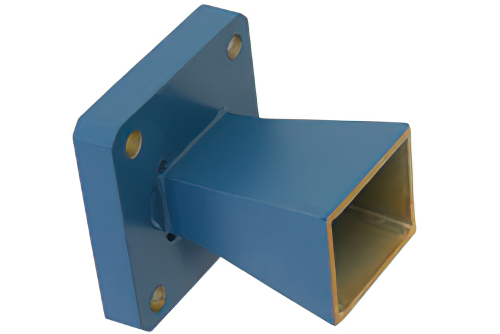

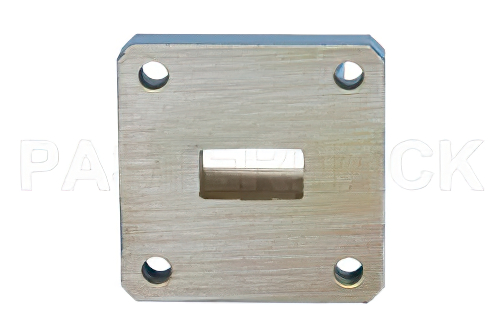

WR-51 Waveguide Standard Gain Horn Antenna Operating from 15 GHz to 22 GHz with a Nominal 10 dBi Gain with Square Cover Flange
Product ID:
PE9853-10
Key Specifications
Key Specifications (Click on Data Sheet Above for Additional Details). |
Waveguide Size | WR-51 |
Gain Min | 10 |
Flange Size | Square Cover |
Frequency, Min | 15 GHz |
Frequency, Max | 22 GHz |
Beam Width V | 54.2 |
Beam Width H | 55.1 |
Description
WR-51 Standard Gain Horn Antenna Operating From 15 GHz to 22 GHz With a Nominal 10 dB Gain With Square Cover Flange
PE9853-10 WR-51 standard gain horn antenna is also known as a waveguide horn. This WR-51 standard gain horn antenna has a 10 dB nominal gain and a square cover flange. Our 10 dB WR-51 horn antenna has a minimum frequency of 15 GHz and a maximum frequency of 22 GHz.
WR-51 standard gain horn waveguide antenna PE9853-10 has a vertical beam width of 54.2 and horizontal of 55.1 degrees at 3 dB. This WR-51 standard gain horn antenna with 10 dB is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-51 waveguide horn antenna can ship worldwide the same day as it is purchased as with our other available RF parts.
