WR 62 12.4 GHz to 18.0 GHz Standard Gain Horns

Check out our new RF calculators & conversion tools...

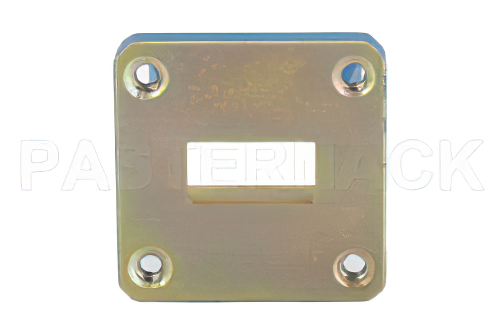

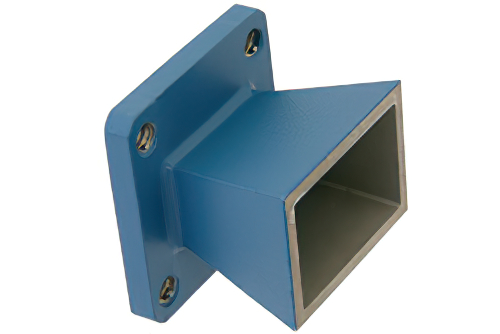

WR-62 Waveguide Standard Gain Horn Antenna Operating From 12.4 GHz to 18 GHz With a Nominal 10 dBi Gain With Square Cover Flange

Product ID: PE9854-10
WR-62 Waveguide Standard Gain Horn Antenna Operating From 12.4 GHz to 18 GHz With a Nominal 10 dBi Gain With Square Cover Flange


Image Views:  WR-62 Waveguide Standard Gain Horn Antenna Operating From 12.4 GHz to 18 GHz With a Nominal 10 dBi Gain With Square Cover Flange high resolution
Zoomalternate image
View 2


Click for:PE9854-10 Datasheet
Click for:PE9854-10 RoHS Cert
Click for:PE9854-10 REACH Cert
Available Quantity: 18
Pricing Table
QUANTITYPRICE
1-4$732.60
5-9$681.32
10-24$630.04
25-49$586.08
50+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Waveguide SizeWR-62
Gain Min10
Flange SizeSquare Cover
Frequency, Min12.4 GHz
Frequency, Max18 GHz
Beam Width V50.9
Beam Width H55.3


WR-62 Standard Gain Horn Antenna Operating From 12.4 GHz to 18 GHz With a Nominal 10 dB Gain With Square Cover Flange

PE9854-10 WR-62 standard gain horn antenna is also known as a waveguide horn. This WR-62 standard gain horn antenna has a 10 dB nominal gain and a square cover flange. Our 10 dB WR-62 horn antenna has a minimum frequency of 12.4 GHz and a maximum frequency of 18 GHz.

WR-62 standard gain horn waveguide antenna PE9854-10 has a vertical beam width of 50.9 and horizontal of 55.3 degrees at 3 dB. This WR-62 standard gain horn antenna with 10 dB is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-62 waveguide horn antenna can ship worldwide the same day as it is purchased as with our other available RF parts.
