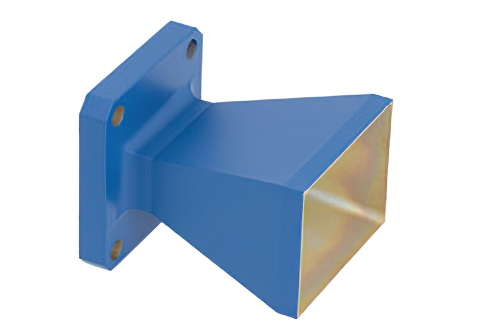

WR-90 Waveguide Standard Gain Horn Antenna Operating From 8.2 GHz to 12.4 GHz With a Nominal 10 dBi Gain With UG-135/U Square Cover Flange
Product ID:
PE9856-10
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Waveguide Size | WR-90 |
| Gain Min | 10 |
| Flange Size | Square Cover |
| Frequency, Min | 8.2 GHz |
| Frequency, Max | 12.4 GHz |
| Beam Width V | 47.4 |
| Beam Width H | 48.5 |
Description
WR-90 Standard Gain Horn Antenna Operating From 8.2 GHz to 12.4 GHz With a Nominal 10 dB Gain With Square Cover Flange
PE9856-10 WR-90 standard gain horn antenna is also known as a waveguide horn. This WR-90 standard gain horn antenna has a 10 dB nominal gain and a square cover flange. Our 10 dB WR-90 horn antenna has a minimum frequency of 8.2 GHz and a maximum frequency of 12.4 GHz.
WR-90 standard gain horn waveguide antenna PE9856-10 has a vertical beam width of 47.4 and horizontal of 48.5 degrees at 3 dB. This WR-90 standard gain horn antenna with 10 dB is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-90 waveguide horn antenna can ship worldwide the same day as it is purchased as with our other available RF parts.
