Pre-Built Gain Horn Assemblies

Pre-Built Gain Horn Assemblies

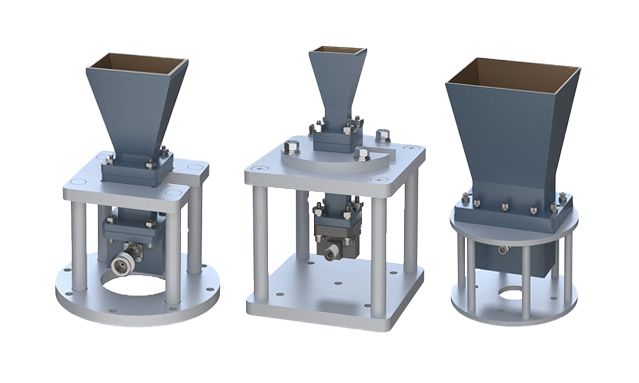

Pasternack introduces pre-built assemblies using our standard gain horns and gain horns with coax adapters, enhanced with a cage-style mount for improved usability and ease of installation. Available in WR-34, WR-51, WR-75, and WR-430 sizes with dB values of 10, 15, and 20, these assemblies are ideal for a wide range of applications requiring reliable, high-performance signal transmission.

Simplify Installation, Enhance Usability, and Ensure Reliable Performance with Minimal Signal Interference

Availability

Pasternack’s pre-built assemblies are in-stock and ready to ship with no minimum order quantities.

Comprehensive Solution

Each assembly includes a gain horn, waveguide to coax adapter, and mount, offering a complete, ready-to-use solution.

Superior Signal Integrity

Engineered to minimize signal interference to ensure reliable, high-quality performance.

Pre-Built Gain Horn Assemblies Features

Cage Style Mount

Cage-style mounts enhance the ease of mounting and increases usability, making installation quick and straightforward.

Various dB Values

Offered in 10, 15, and 20 dB values, ensuring versatility for diverse applications.

Multiple WR Sizes

Available in WR-34, WR-51, WR-75, and WR-430 sizes for compatibility with a broad range of waveguide dimensions.

Durable Construction

Built to withstand rigorous use, these assemblies offer robust performance and long-lasting reliability in various environments.

Featured Pre-Built Gain Horn Assemblies

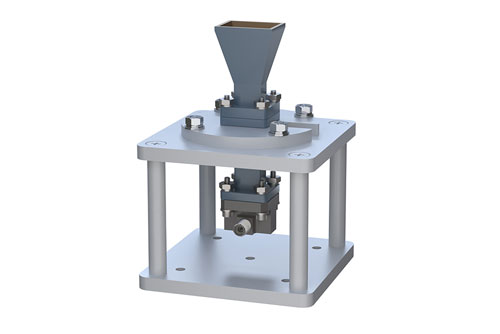

WR-34 Standard Gain Horn with 15 dBi gain, 2.92mm Female Connector, Integrated Cage-Style Mount

Shop Now

WR-51 Standard Gain Horn with 15 dBi gain, End Launch SMA Female Connector, Integrated Cage-Style Mount

Shop Now

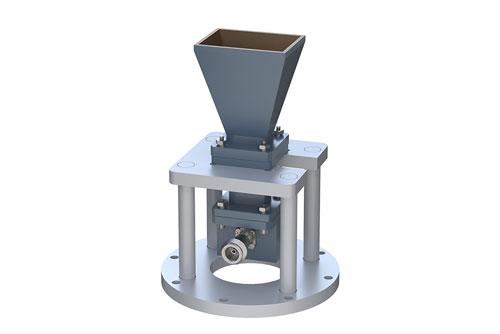

WR-75 Standard Gain Horn with 15 dBi gain, N Female Connector, Integrated Cage-Style Mount

Shop Now

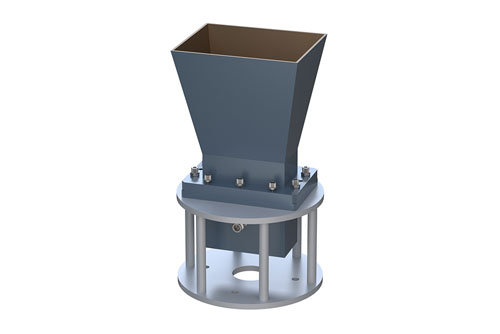

WR-430 Standard Gain Horn with 10 dBi gain, N Female Connector, Integrated Cage-Style Mount

Shop Now
