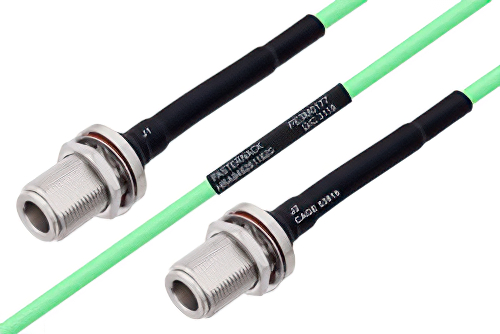

Temperature Conditioned N Female Bulkhead to N Female Bulkhead Low Loss Cable 60 Inch Length Using PE-P142LL Coax

Product ID: PE3M0177-60

Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

Pricing

QuantityPrice
1-24$1,030.00
25-49$978.50
50-99$927.00
100-249$885.80
250+Call Us

* All Prices are in US Dollars and do not include duties

Buy

Call for Availability
Shipping Truck
Same-Day Shipping!
Order in the next hours!
* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.
* All cable assembly length tolerance are as provided on the datasheet. If not provided, cable length tolerances are within the IPC standards (2022-24) as shown here.
* All Prices are in US Dollars and do not include duties

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1N
Connector Gender 1Female
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1Bulkhead
Connector Impedance 150 Ohm
Connector Series 2N
Connector Gender 2Female
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2Bulkhead
Connector Impedance 250 Ohm
RF Cable Part NumberPE-P142LL-27478
RF Cable TypePE-P142LL
RF Cable Impedance50 Ohm
Length60 inches

Description

Temperature Conditioned N Female Bulkhead to N Female Bulkhead Low Loss Cable 60 Inch Length Using PE-P142LL Coax

Pasternack temperature conditioned N female bulkhead to N female bulkhead low loss cable 60 inch length using PE-P142LL coax is a high reliability RF assembly that is available for same day shipping. PE3M0177-60 is part of one of the largest selections of same day shipping highly reliable coaxial cables for RF, microwave and mmWave interconnect applications. Pasternack hi-rel temperature conditioned coaxial cable assembly products are great choices for industries such as military / defense, telecom, industrial / commercial, utilities, etc.

High reliability temperature conditioned coax cables from Pasternack are designed for applications requiring high quality and temperature consistent wire properties. These highly reliable RF assemblies are preferred for uses such as laboratory RF test and measurement, severe / harsh weather, rugged use, designed for defense / military applications, telecom antenna tower component jumper connections, commercial / industrial production environments, low loss, etc. This temperature conditioned RF cable, like our other Pasternack coaxial assemblies, will ship the same-day and any custom high reliability type N to type N cable assembly orders will as well.

Our temperature conditioned highly reliable low loss coax cable assembly is built with N type connection on one end and N type connection on the other. Our low loss type N to type N cable assemblies have a female gender on end 1 and female on end 2. This type N to type N cable is a female to female coax assembly. PE3M0177-60 can also be known as a temperature conditioned low loss N type jack to type N jack cable assembly and will be shipped the same day after it is purchased.

N type jack to type N jack cable assembly PE3M0177-60 is built with PE-P142LL which is a flexible coax. The Pasternack flexible type N cable assembly is manufactured with type N to type N cable connectors, has a 50 Ohm impedance and is triple shielded. RF specs on this temperature conditioned 18 GHz maximum frequency N type female to type N female cable are located on the datasheet specifications PDF along with CAD drawing and dimensions.

Pasternack high reliability low loss N type jack to type N jack cable assembly is just one of more than 45,000 in-stock RF products available. Pasternack is where to buy a high quality type N to type N cable assembly for same-day shipment worldwide. Variations of PE44813 type N cable assemblies can also be built and will ship same-day as well, search this website or contact us for assistance. For all these reasons and more, Pasternack is one of the best websites where to find and buy quality RF cable assemblies like this temperature conditioned N female bulkhead to N female bulkhead low loss cable 60 inch length using PE-P142LL coax.

The PE3M0177-60 is a low loss N female bulkhead to N female bulkhead cable assembly designed for RF panel interfaces, offering 50 Ohm impedance and DC to 18 GHz operation. It supports RF system integration where secure bulkhead pass-through connections are needed between enclosure panels, test setups, and installed equipment. Passivated Stainless Steel connector bodies, Beryllium Copper contacts, FEP jacket material, and Expanded PTFE Tape dielectric support stable performance from -55°C to 125°C.

Frequently Asked Questions

What is the PE3M0177-60 RF cable assembly?

The PE3M0177-60 is a low loss N female bulkhead to N female bulkhead RF cable assembly built for panel-mounted coaxial signal routing. It uses PE-P142LL-27478 flexible coax, supports 50 Ohm impedance, and operates from DC to 18 GHz. Engineers use it when equipment requires a bulkhead interface on both cable ends for enclosure pass-through connections. Its passivated stainless steel connector bodies and broad temperature range support reliable integration in test, telecom, and industrial systems.

When would I use an N female bulkhead to N female bulkhead cable?

An N female bulkhead to N female bulkhead cable is used when RF signals must pass through panels or enclosures cleanly. The PE3M0177-60 provides straight bulkhead interfaces on both ends, making external and internal cable transitions easier to manage. This configuration is useful in racks, shielded housings, telecom cabinets, and laboratory fixtures that need secure mounting points. It helps engineers create organized RF paths while preserving 50 Ohm system matching across installed coaxial connections.

What applications suit the PE3M0177-60 low loss cable assembly?

The PE3M0177-60 suits RF integration applications that need broadband performance, bulkhead mounting, and flexible low loss coax construction. It supports DC to 18 GHz operation with a 1.4:1 maximum VSWR, which fits many RF and microwave signal paths. Common uses include equipment enclosure feedthroughs, laboratory bench interconnects, telecom infrastructure, and industrial electronics installations. Its temperature range of -55°C to 125°C also supports deployments where thermal stability matters in installed systems.

Why choose a low loss flexible coax cable assembly for panel routing?

A low loss flexible coax cable assembly helps reduce signal degradation while still allowing practical routing inside racks and equipment. The PE3M0177-60 combines PE-P142LL-27478 flexible coax with N female bulkhead connectors for panel-mounted RF connections. This makes it useful where engineers need manageable cable bends, stable impedance, and secure interface transitions through enclosures. It is especially helpful in test systems, communications hardware, and industrial assemblies that balance performance with installation flexibility.
