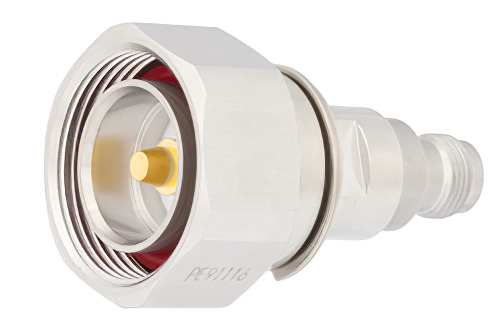

TNC Female to 7/16 DIN Male Adapter
Product ID:
PE91116
Key Specifications
Key Specifications (Click on Data Sheet Above for Additional Details). |
Connector Series 1 | TNC |
Connector Gender 1 | Female |
Connector Polarity 1 | Standard |
Connector Impedance 1 | 50 Ohm |
Connector Series 2 | 7/16 DIN |
Connector Gender 2 | Male |
Connector Polarity 2 | Standard |
Connector Impedance 2 | 50 Ohm |
Frequency, Min | DC |
Frequency, Max | 8 GHz |
Adapter Body Style | Straight |
Connector Mount Method 1 | None |
Connector Mount Method 2 | None |
Connector Body Material 2 | Brass |
Connector Body Plating 2 | Tri-Metal |
Description
TNC Female to 7/16 DIN Male Adapter
TNC adapter PE91116 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our TNC to 7/16 DIN adapter is a between series coaxial adapter design. This 50 Ohm TNC adapter is precision manufactured to RF components industry specifications and has a maximum frequency of 8 GHz.
TNC female to 7/16 DIN male adapter is one of the many RF components that ship same day as they are ordered. PE91116 female TNC to male 7/16 DIN adapter has a straight body. This Pasternack straight TNC coax adapter is a in-line RF adapter.
Our female TNC to male 7/16 DIN adapter PE91116 is shipped from our facility certified to ISO 9001:2015 the same day as purchased. This TNC to 7/16 DIN radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
