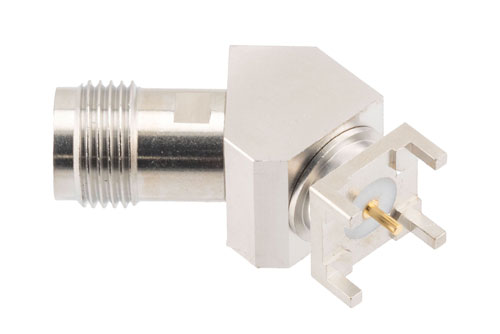

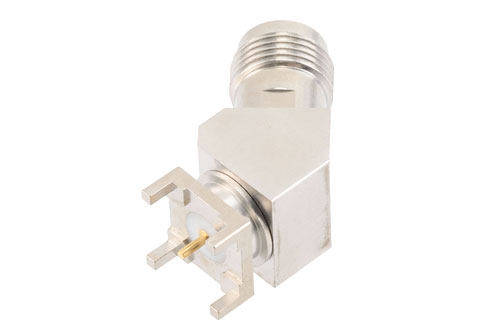

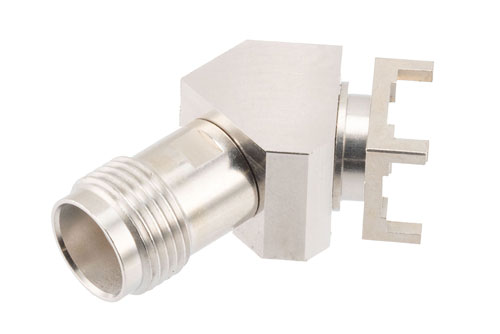

PE46002 TNC female 45 degree PCB RF connector has an impedance of 50 Ohm. Our female TNC 45 degree connector provides a maximum frequency of 18 GHz. This TNC female RF connector is stocked to be readily available for same business day shipment.
The Pasternack 45 degree TNC female PCB connector has a teflon dielectric type and a VSWR of 1.2:1. Pasternack's TNC connector has a brass body with gold over nickel over copper plating. Our PE46002 TNC 45 degree connector uses acopper-tin-zinc alloy-plated beryllium copper contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The radio frequency connector is made from brass material and has a contact life of 500 cycles or more. The PE46002 TNC PCB connector operates at a temperature range of -65 to 165 deg C. This female RF connector has a maximum insertion loss of 0.42 dB. The Pasternack TNC female connector has a dielectric withstanding voltage of 1,500 Vrms.
This Pasternack 45 degree female TNC PCB connector will ship the same business day as purchased. Our PCB TNC 45 degree female connector is part of RF, microwave and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
