TNC 75 Ohm to Type F 75 Ohm Adapters Standard Polarity

Check out our new RF calculators & conversion tools...

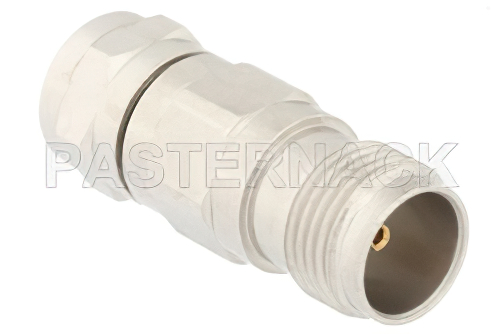

75 Ohm TNC Female to 75 Ohm F Male Adapter

Product ID: PE91083
75 Ohm TNC Female to 75 Ohm F Male Adapter


Image Views:  75 Ohm TNC Female to 75 Ohm F Male Adapter high resolution
Zoomalternate image
View 2


Click for:PE91083 Datasheet
Click for:PE91083 RoHS Cert
Click for:PE91083 REACH Cert
Available Quantity: 72
Pricing Table
QUANTITYPRICE
1-24$92.83
25-49$88.19
50-99$83.55
100-249$79.83
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1TNC
Connector Gender 1Female
Connector Polarity 1Standard
Connector Impedance 175 Ohm
Connector Series 2F
Connector Gender 2Male
Connector Polarity 2Standard
Connector Impedance 275 Ohm
Frequency, MinDC
Frequency, Max2 GHz
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Mount Method 2None
Connector Body Material 2Brass
Connector Body Plating 2Nickel


75 Ohm TNC Female to 75 Ohm F Male Adapter

TNC adapter PE91083 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our TNC to type F adapter is a between series coaxial adapter design. This 75 Ohm TNC adapter is precision manufactured to RF components industry specifications and has a maximum frequency of 2 GHz.

TNC female to type F male adapter is one of the many RF components that ship same day as they are ordered. PE91083 female TNC to male type F adapter has a straight body. This Pasternack straight TNC coax adapter is a in-line RF adapter.

Our female TNC to male F type adapter PE91083 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This TNC to F type radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
