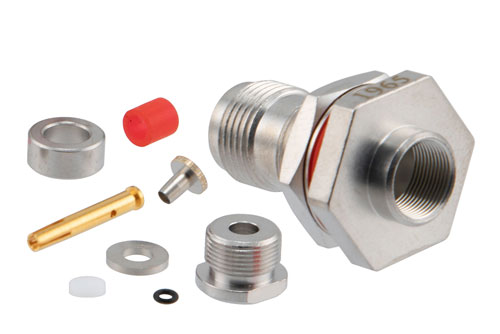

PE1965 TNC female bulkhead hermetically sealed coaxial connector has an interface type of TNC female which is compatible with LMR-100A-PVC, PE-C100, RG174, RG316 and RG188 cables and has an impedance of 50 Ohms. Pasternack’s TNC female bulkhead connector uses clamp/solder as an attachment method. Our female TNC coaxial connector provides a maximum frequency of 4.5 GHz. This TNC female RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online cable creator.
The Pasternack TNC female bulkhead hermetically sealed coaxial connector has a PTFE dielectric type and a VSWR of 1.2:1. Pasternack’s TNC coaxial connector has a brass body with tri-metal plating. Our PE1965 TNC connector uses a gold-plated phosphor bronze contact. The Pasternack RF connector has a maximum inner and outer conductor resistance of 1.5 mOhms and 1 mOhm respectively. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The radio frequency connector made from brass material has a contact life of 500 cycles or more. The PE1965 TNC bulkhead connector operates at a temperature range of -65 to 165 deg C. This threaded female TNC coaxial RF connector has a maximum insertion loss of 0.212 dB. This TNC connector has a gold inner contact plating. The Pasternack TNC female connector has a maximum operating voltage of 500 Vrms and a dielectric withstanding voltage of 1,500 Vrms. This coaxial RF connector comes with a minimum insulation resistance of 5,000 MOhms. Our TNC female connector has a length of 1.17 inches, a width of 0.69 inches, and a weight of 0.022 lbs.
This Pasternack female TNC bulkhead connector will ship the same business day as purchased. Our bulkhead TNC female connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
