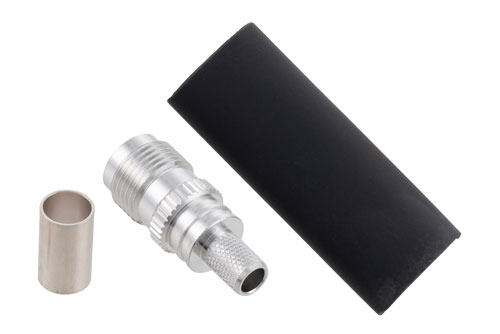

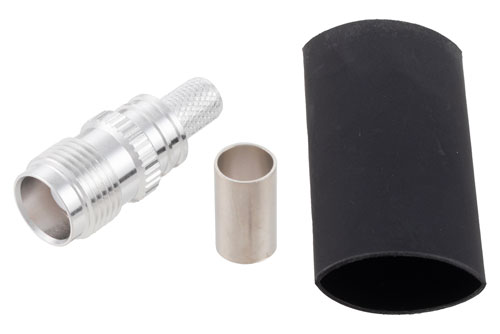

EZ-240-TF-X TNC female coaxial connector has an interface type of TNC female LMR-240, LMR-240-DB, LMR-240-UF, LMR-240-FR, RG8X and PE-C240 and a 50 Ohm impedance. Pasternack's TNC female connector uses crimp/non-solder contact as an attachment method. Our female TNC coaxial connector provides a maximum frequency of 6 GHz.
The Pasternack TNC female coaxial connector has a PTFE dielectric type and a VSWR of 1.3:1. Pasternack's TNC coaxial connector has a brass body with tri-metal plating. Our EZ-240-TF-X TNC connector uses tri-metal-plated brass contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The radio frequency connector is made from brass material and has a contact life of 500 cycles or more. Our high-quality EZ-240-TF-X features an 80 µin minimum body plating specification. The EZ-240-TF-X TNC connector operates at a temperature range of -55 to 155 deg C. This threaded female coaxial RF connector has a maximum insertion loss of 0.24 dB.
This Pasternack female TNC connector will ship the same business day as purchased. Our TNC female connector is part of RF, microwave and millimeter wave components in stock for worldwide shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
*LMR™ is a Trademark of Times Microwave
