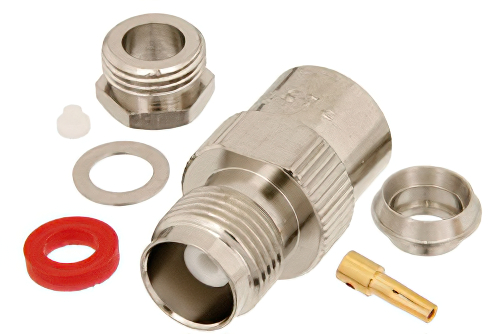

PE4460 TNC female coaxial connector has an interface type of TNC female which is compatible with RG59B/U, RG62 and RG71 cables and has an impedance of 50 Ohms. Pasternack's TNC female connector uses clamp/solder as an attachment method. Our female TNC coaxial connector provides a maximum frequency of 1 GHz. This TNC female RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online Cable Creator.
The Pasternack TNC female coaxial connector has a PTFE dielectric type and a VSWR of 1.3:1. Pasternack's TNC coaxial connector has a brass body with nickel plating. Our PE4460 TNC connector uses agold-plated brass contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
Our high-quality PE4460 features a 100 µin minimum body plating specification. The PE4460 TNC connector operates at a temperature range of -65 to 165 deg C. This TNC connector has a gold inner contact plating. The Pasternack TNC female connector has a maximum operating voltage of 500 Vrms. Our TNC female connector has a length of 1.125 inches, a width of 0.57 inches, and a weight of 0.041 lbs.
This Pasternack female TNC connector will ship the same business day as purchased. Our TNC female connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
