Reverse Polarity TNC Female Bulkhead to Reverse Polarity SMA Male Cable Using LMR-100 Coax

Product ID: PE3W07758

Length

Standard Length

Custom Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

View
Datasheet

3D CAD
Model
(.step)

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	TNC
Connector Gender 1	Female
Connector Polarity 1	Reverse Polarity
Connector Angle 1	Straight
Connector Mount Method 1	Bulkhead
Connector Impedance 1	50 Ohm
Connector Series 2	SMA
Connector Gender 2	Male
Connector Polarity 2	Reverse Polarity
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	LMR-100A-PVC
RF Cable Type	LMR-100A
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE44902	LMR-100A-PVC	PE4770	KitBOM Datasheet

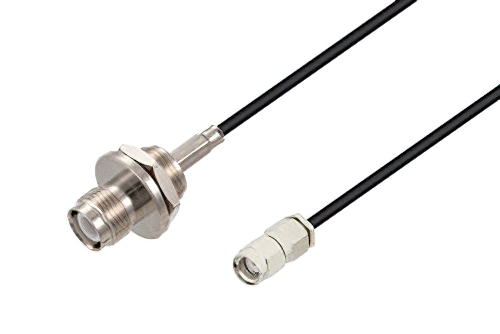

Reverse Polarity TNC Female Bulkhead to Reverse Polarity SMA Male Cable Using LMR-100 Coax

PE3W07758 is a reverse polarity TNC female bulkhead to reverse polarity SMA male cable using LMR-100A coax. This Pasternack reverse polarity TNC female bulkhead to reverse polarity SMA male cable assembly uses a 50 Ohm TNC for connector 1 and a 50 Ohm SMA for connector 2.

Our reverse polarity female TNC bulkhead to reverse polarity male SMA cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W07758 TNC reverse polarity female bulkhead to SMA reverse polarity male cable assembly is constructed with LMR-100A coax.

* LMR™ is a trademark of Times Microwave Systems.
