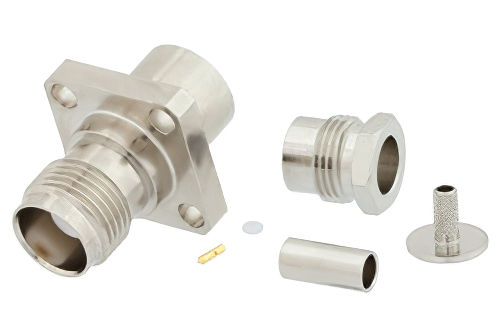

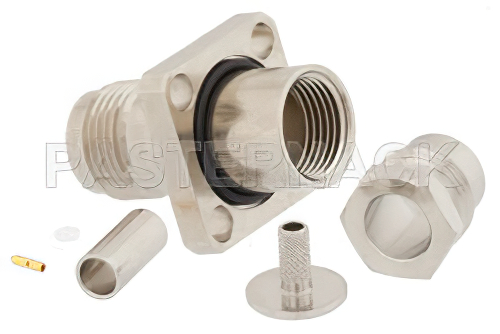

TNC Female Connector Clamp/Solder Attachment 4 Hole Flange Mount for RG316-DS, RG188-DS, IP67 Rated

Name: TNC Female Connector Clamp/Solder Attachment 4 Hole Flange Mount for RG316-DS, RG188-DS, IP67 Rated
Brand: Pasternack
SKU: PE44901
Availability: InStock

Product ID: PE44901

Pricing

Quantity	Price
1-24	$83.99
25-49	$79.79
50-99	$75.59
100-249	$72.23
250+	Call Us

* All Prices are in US Dollars and do not include duties

Buy

How many?

Available Quantity: 150

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties

View
Datasheet

3D CAD
Model
(.step)

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Polarity	Standard
Connector Series	TNC
Connector Gender	Female
Impedance	50 Ohm
Body Style	Straight
Attachment Method	Clamp/Solder
Mount Method	4 Hole Flange
Minimum Frequency	DC
Maximum Frequency	2 GHz
Interface Type 1	RG316-DS
Interface Type 2	RG188-DS

Description

TNC Female Connector Clamp/Solder Attachment 4 Hole Flange Mount for RG316-DS, RG188-DS, IP67 Rated

PE44901 TNC female 4 hole flange coaxial connector has an interface type of RG316-DS, RG188-DS and a 50 Ohm impedance. Pasternack TNC female 4 hole flange connector uses shield/contact clamp/solder as an attachment method. Our female TNC coaxial connector provides a minimum frequency of DC and a maximum frequency of 2 GHz.

The Pasternack TNC female 4 hole flange coaxial connector has a PTFE dielectric type. The Pasternack TNC coaxial connector has a brass body with nickel plating. Our PE44901 TNC connector uses beryllium copper contact. This TNC female 4 hole flange coaxial RF connector is REACH compliant.

This Pasternack female TNC 4 hole flange connector will ship the same day as purchased. Our 4 hole flange TNC female connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom TNC connector cable assemblies that will ship the same day as well.
