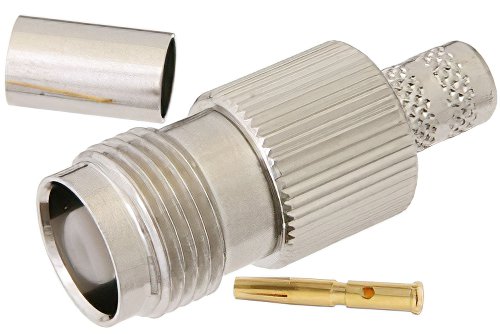

PE44636 TNC female coaxial connector has an interface type of TNC female, which is compatible with PE-C240, RG8X, .240 inch, LMR®-240, LMR®-240-DB and LMR®-240-UF cables, and has an impedance of 50 Ohms. Pasternack’s TNC female connector uses crimp/solder as an attachment method. Our female TNC coaxial connector provides a maximum frequency of 11 GHz. This TNC female RF connector is stocked to be readily available for same business day shipment and can also be designed onto custom cable configurations using our online cable creator.

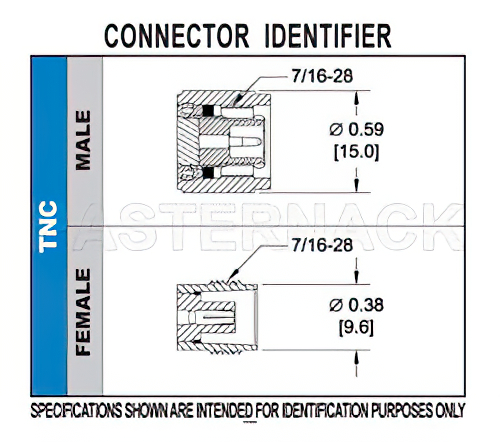

The Pasternack TNC female coaxial connector has a PTFE dielectric type. Pasternack’s TNC coaxial connector has a brass body with nickel plating. Our PE44636 TNC connector uses a gold-plated phosphor bronze contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The PE44636 TNC connector operates at a temperature range of -40 to 85 deg C. This TNC connector has a gold inner contact plating. Our TNC female connector has a length of 1.325 inches, a width of 0.452 inches, and a weight of 0.026 lbs.
This Pasternack female TNC connector will ship the same business day as purchased. Our TNC female connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
LMR® is a registered trademark of Times Microwave Systems.
