TNC to 7/16 DIN Adapters Standard Polarity

Check out our new RF calculators & conversion tools...

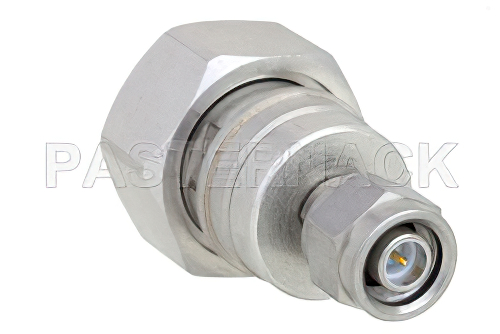

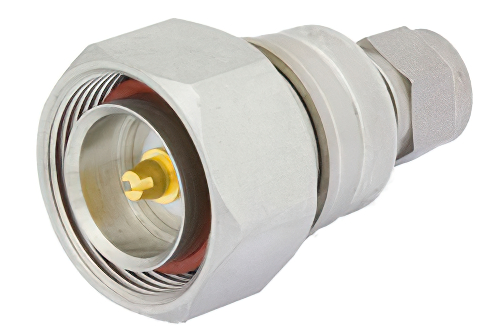

TNC Male to 7/16 DIN Male Adapter

Product ID: PE9637
TNC Male to 7/16 DIN Male Adapter


Image Views:  TNC Male to 7/16 DIN Male Adapter high resolution
Zoomalternate image
View 2


Click for:PE9637 Datasheet
Click for:PE9637 RoHS Cert
Click for:PE9637 REACH Cert
DISCONTINUED PRODUCT
Search for alternative
Adapters.

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1TNC
Connector Gender 1Male
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 27/16 DIN
Connector Gender 2Male
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Body Material 1Passivated Stainless Steel
Connector Mount Method 2None
Connector Body Material 2Brass
Connector Body Plating 2Tri-Metal


TNC Male to 7/16 DIN Male Adapter

TNC adapter PE9637 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our TNC to 7/16 DIN adapter is a between series coaxial adapter design. This 50 Ohm TNC adapter is precision manufactured to RF components industry specifications.

TNC male to 7/16 DIN male adapter is one of the many RF components that ship same day as they are ordered. PE9637 male TNC to male 7/16 DIN adapter has a straight body. This Pasternack straight TNC coax adapter is a in-line RF adapter.

Our male TNC to male 7/16 DIN adapter PE9637 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This TNC to 7/16 DIN radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
