TNC Male to BNC Male Cable Assemblies

Check out our new RF calculators & conversion tools...

Reverse Polarity TNC Male to BNC Male Cable Using PE-B405 Coax

Product ID: PE35239LF

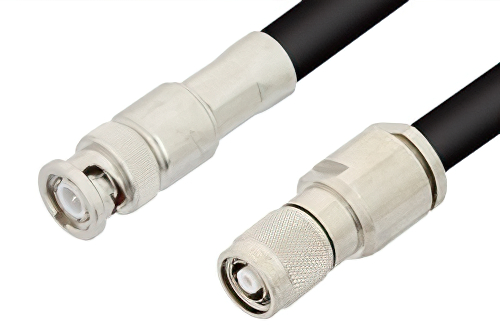

Reverse Polarity TNC Male to BNC Male Cable Using PE-B405 Coax

Image Views:  Reverse Polarity TNC Male to BNC Male Cable Using PE-B405 Coax high resolution
Zoom


Click for:PE35239LF Datasheet
DISCONTINUED PRODUCT
Search for alternative
Cable Assemblies.
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1TNC
Connector Gender 1Male
Connector Polarity 1Reverse Polarity
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2BNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-B405
RF Cable TypePE-B405
RF Cable Impedance50


Reverse Polarity TNC Male to BNC Male Cable Using PE-B405 Coax

PE35239LF is a reverse polarity TNC male to BNC male cable using PE-B405 coax. This Pasternack reverse polarity TNC male to BNC male cable assembly uses a 50 Ohm TNC for connector 1 and a 50 Ohm BNC for connector 2.

Our reverse polarity male TNC to male BNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE35239LF TNC reverse polarity male to BNC male cable assembly is constructed with PE-B405 coax.
